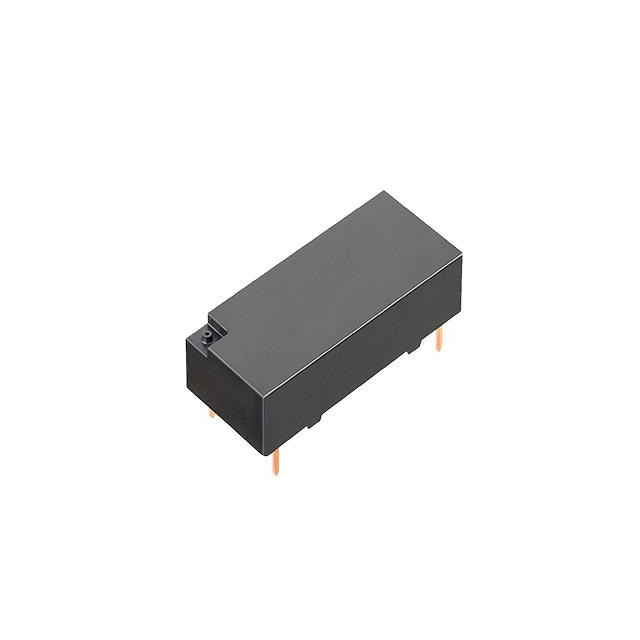

ASFM0032S Real Image
Same model may have multiple batches, images only for reference.

ASFM0032S

Part No ASFM0032S
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY SAFETY DPST NO/NC 6A/3A 3V /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Safety Relays
Mfr Panasonic Electric Works
Series SF-M
Package Tube
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 6 A
Switching Voltage 250VAC, 125VDC - Max
Features Sealed - Flux Protection
Termination Style PC Pin
Must Operate Voltage 2.25 VDC
Must Release Voltage 0.3 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Coil Current 90 mA
Coil Power 270mW
Coil Resistance 33.3 Ohms
Base Product Number ASFM0032
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names 255-ASFM0032S
Standard Package 20
Win Source Part Number 1014070-ASFM0032S
Ultra Librarian 3D Model Ultra Librarian ASFM0032S CAD Model

Description

The ASFM0032S is a safety relay manufactured by Panasonic Electric Works.

  • Series: SF-M
  • Contact Form: DPST-NO/NC
  • Contact Rating: 6A
  • Switching Voltage: 250VAC, 125VDC
  • Coil Voltage: 3VDC
  • Coil Resistance: 33.3 Ohms
  • Coil Current: 90mA
  • Must Operate Voltage: 2.25VDC
  • Must Release Voltage: 0.3VDC
  • Protection: Sealed, Flux
