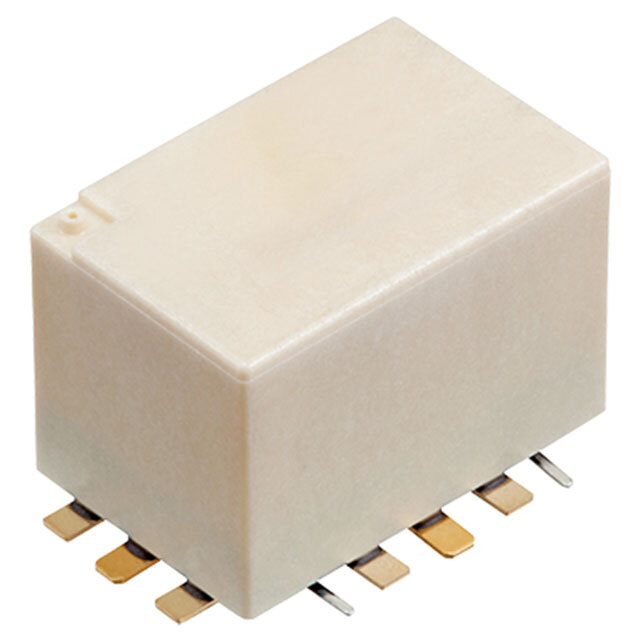

ARJ20A12Z

Part No ARJ20A12Z
Manufacturer Panasonic
Catalog High Frequency (RF) Relays
Description RELAY RF DPDT 300MA 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Type Non Latching
Coil Current 16.7 mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 300 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 5 ms
Release Time 5 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -30°C ~ 70°C
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1549627-ARJ20A12Z
Ultra Librarian 3D Model Ultra Librarian ARJ20A12Z CAD Model
