Same model may have multiple batches, images only for reference.

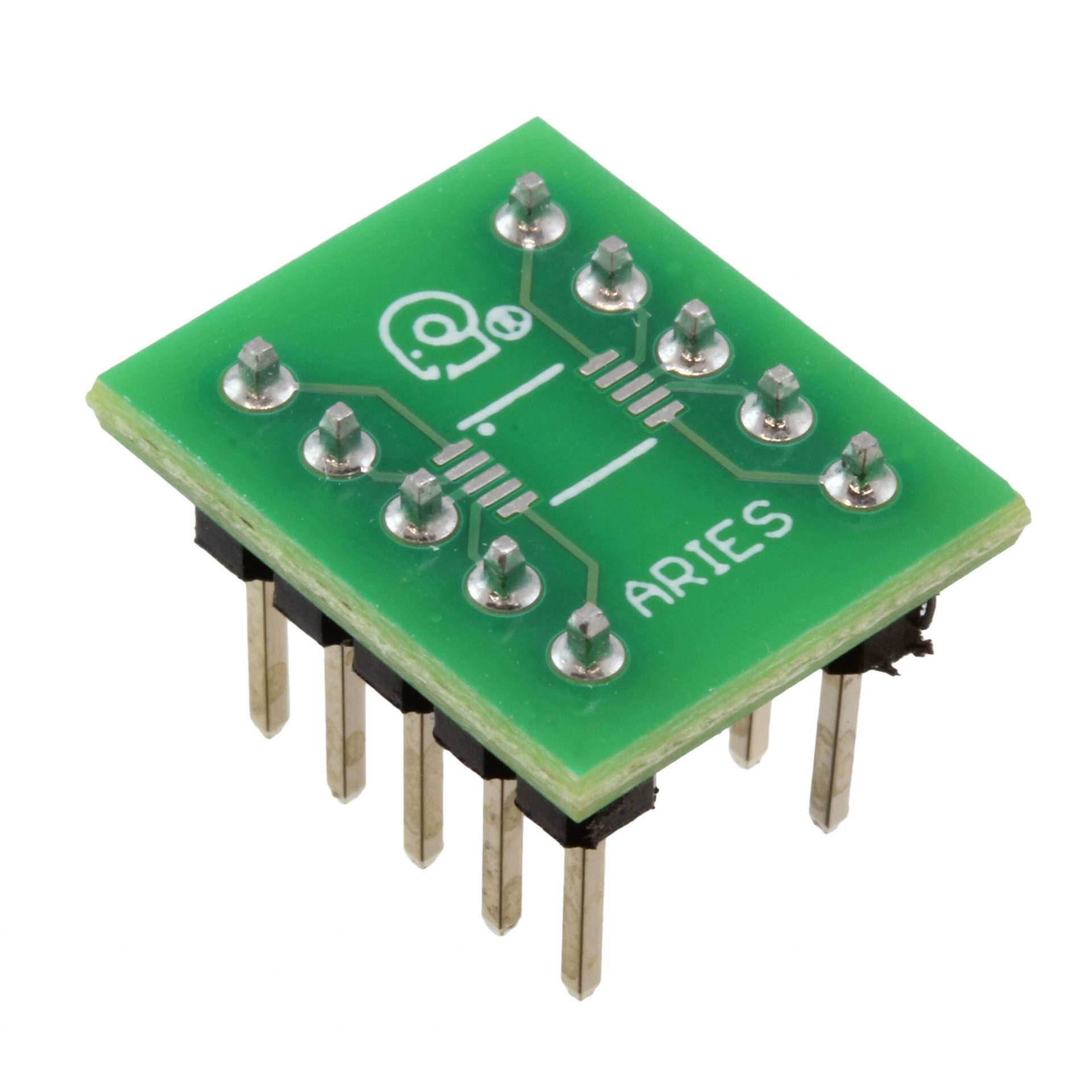

LCQT-MSOP10 Real Image
Same model may have multiple batches, images only for reference.

LCQT-MSOP10

Part No LCQT-MSOP10
Manufacturer Aries Electronics
Catalog Unclassified
Description SOCKET ADAPTER MSOP TO 10DIP
Datasheet
LCQT-MSOP10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Prototyping, Fabrication Products - Adapter, Breakout Boards
Mfr Aries Electronics
Series Correct-A-Chip®
Package Bulk
Proto Board Type SMD to DIP
Package Accepted MSOP
Number of Positions 10
Pitch 0.020" (0.50mm)
Board Thickness 0.062" (1.57mm) 1/16"
Material FR4 Epoxy Glass
Size / Dimension 0.600" L x 0.500" W (15.24mm x 12.70mm)
Base Product Number LCQT-MS
Standard Package 48
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341693-LCQT-MSOP10
Ultra Librarian 3D Model Ultra Librarian LCQT-MSOP10 CAD Model

Description

The LCQT-MSOP10 is an adapter/breakout board from Aries Electronics, part of the Correct-A-Chip® series.

  • Series: Correct-A-Chip®
  • Type: Prototype Board
  • Positions: 10
  • Pitch: 0.020" (0.50mm)
  • Material: FR4 Epoxy Glass
  • Thickness: 0.062" (1.57mm)
  • Package: Bulk
  • Size: 0.600" L x 0.500" W (15.24mm x 12.70mm)
  • Application: SMD to DIP
  • Operating Temperature: -55°C to 125°C
  • RoHS: Non-Compliant
