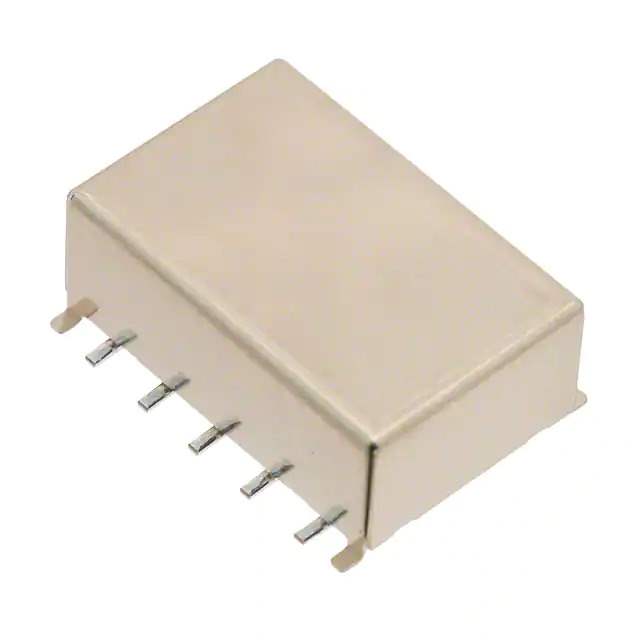

ARA220A4H Real Image
Same model may have multiple batches, images only for reference.

ARA220A4H

Part No ARA220A4H
Manufacturer Panasonic
Catalog High Frequency (RF) Relays
Description RELAY RF DPDT 1A 4.5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - High Frequency (RF) Relays
Mfr Panasonic
Series ARA
Package Tube
Product Status Active
Coil Type Latching, Dual Coil
Coil Current 31 mA
Coil Voltage 4.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 30VDC - Max
Must Operate Voltage 3.38 VDC
Operate Time 4 ms
Release Time 4 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Coil Power 140mW
Coil Resistance 145 Ohms
Base Product Number ARA220
Standard Package 40 pcs
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 911685-ARA220A4H
Ultra Librarian 3D Model Ultra Librarian ARA220A4H CAD Model

Description

The ARA series high-frequency relay, part number 911685-ARA220A4H, is a versatile electronic component manufactured by Panasonic.

  • Contact Form: DPDT (2 Form C)
  • Contact Material: silver palladium (AgPd) and gold (Au)
  • Contact Rating: 1 A
  • Switching Voltage: 30VDC
  • Coil Voltage: 4.5VDC
  • Coil Resistance: 145 Ohms
  • Coil Current: 31 mA
  • Operate Time: 4 ms
  • Release Time: 4 ms
  • Mounting: surface mount
  • Operating Temperature Range: -40°C to 85°C
