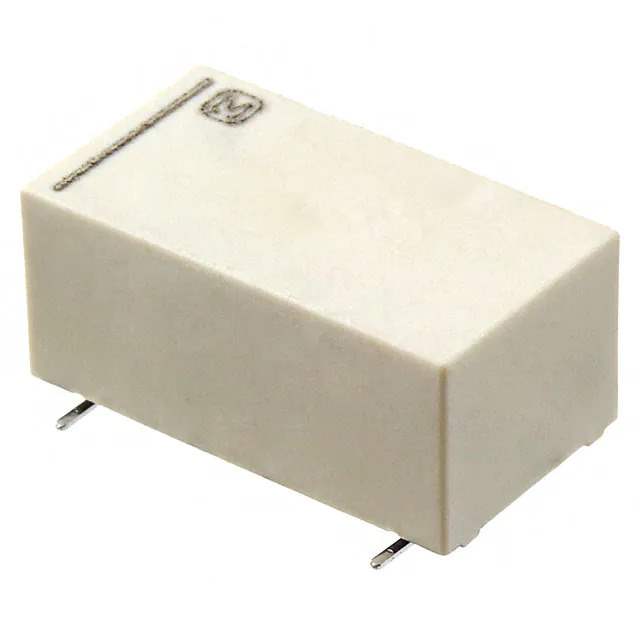

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - High Frequency (RF) Relays
Mfr Panasonic
Series ARE
Package Tube
Product Status Obsolete
Coil Type Non Latching
Coil Current 44.4 mA
Coil Voltage 4.5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 3.38 VDC
Must Release Voltage 0.45 VDC
Operate Time 10 ms
Release Time 5 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 70°C
Contact Material Gold Plating
Coil Power 200mW
Coil Resistance 101 Ohms
Base Product Number ARE13A
Standard Package 25 pcs
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 861792-ARE13A4H
Ultra Librarian 3D Model Ultra Librarian ARE13A4H CAD Model

Description

The ARE13A4H is a high-frequency (RF) relay from Panasonic's ARE series.

  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 500 mA
  • Coil Voltage: 4.5VDC
  • Coil Resistance: 101 Ohms
  • Operate Time: 10ms
  • Release Time: 5ms
  • Relay Type: Non-Latching
  • Contact Material: Gold Plated
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 70°C
  • Package: Tube
  • Standard Package: 25 pcs
  • Status: Obsolete
  • ECCN: EAR99
