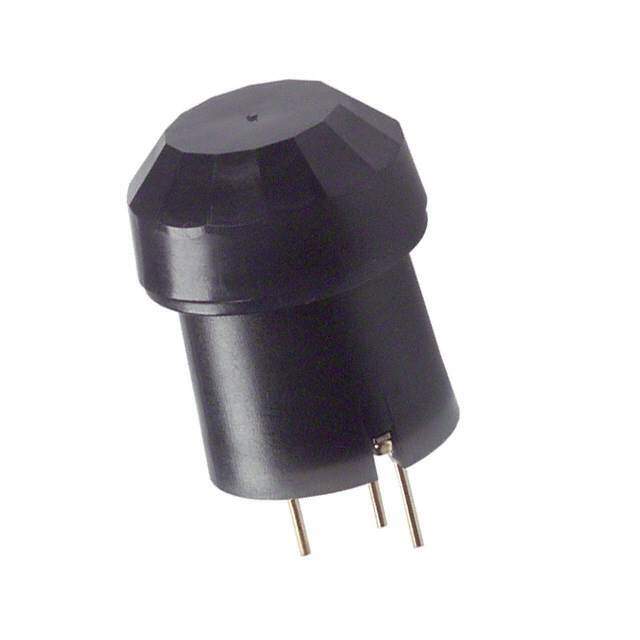

AMN42121 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Motion Sensors - Optical
Mfr Panasonic Electric Works
Series AMN
Package Bulk
Sensor Type PIR (Passive Infrared)
Sensing Distance 78.7" (2m) 6.6'
Output Type Digital
Voltage - Supply 2.2V ~ 3V
Trigger Type Internal
Features Slight Motion Lens, Black
Package / Case Cylinder
Temperature Range - Operating -20°C ~ 60°C (TA)
Detection Pattern Slight
Base Product Number AMN421
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Other Names 255-1809
Standard Package 50
Win Source Part Number 1210103-AMN42121
Ultra Librarian 3D Model Ultra Librarian AMN42121 CAD Model

Description

The AMN42121 is an optical motion sensor from Panasonic Electric Works.

  • Sensing Distance: 78.7 inches (2m)
  • Detection Pattern: Slight
  • Package: Bulk
  • Standard Package: 50
  • Voltage Supply: 2.2V ~ 3V
  • Operating Temperature Range: -20°C ~ 60°C (TA)
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
