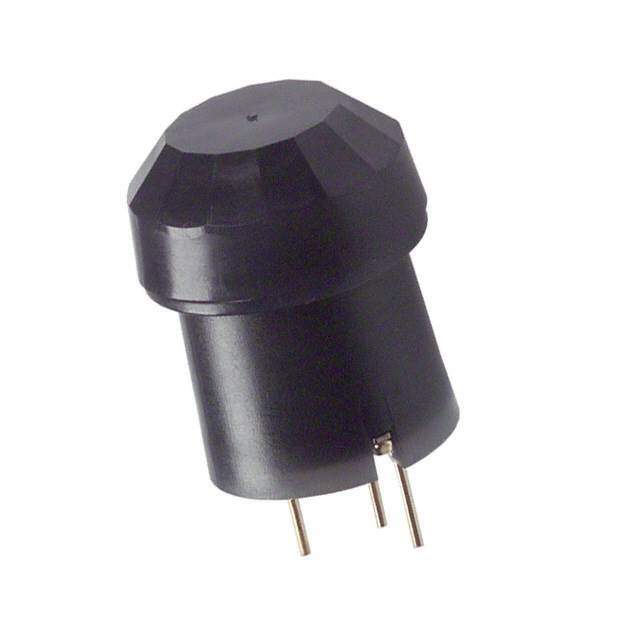

AMN22111 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Motion Sensors - Optical
Mfr Panasonic Electric Works
Series AMN
Package Bulk
Sensor Type PIR (Passive Infrared)
Sensing Distance 78.7" (2m) 6.6'
Output Type Analog
Voltage - Supply 4.5V ~ 5.5V
Trigger Type Internal
Features Slight Motion Lens, Black
Package / Case Cylinder
Temperature Range - Operating -20°C ~ 60°C (TA)
Detection Pattern Slight
Base Product Number AMN221
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Other Names 255-1816,AMN22111-ND
Standard Package 50
Win Source Part Number 1138861-AMN22111
Ultra Librarian 3D Model Ultra Librarian AMN22111 CAD Model

Description

The Panasonic Electric Works AMN22111 is a slight motion lens motion sensor that has a sensing distance of 78.7 inches and a detection pattern of slight.

  • Sensing Distance: 78.7 inches
  • Detection Pattern: Slight
  • Output Type: Analog
  • Trigger Type: Internal
  • Sensor Type: PIR (Passive Infrared)
  • Temperature Range: -20°C to 60°C
  • Voltage Supply: 4.5V to 5.5V
