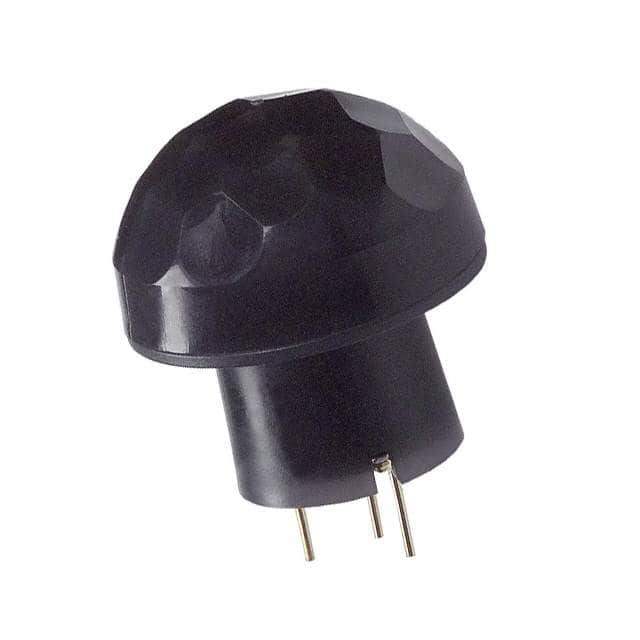

AMN24111 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - Optical Motion Sensors
Mfr Panasonic
Series AMN
Package Bulk
Product Status Active
Sensor Type PIR (Passive Infrared)
Sensing Distance 394" (10m) 32.8'
Output Type Analog
Voltage - Supply 4.5V ~ 5.5V
Trigger Type Internal
Features Long Distance Lens, Black
Package / Case Cylinder
Temperature Range - Operating -20°C ~ 60°C (TA)
Detection Pattern 10m
Base Product Number AMN241
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Win Source Part Number 860977-AMN24111
Ultra Librarian 3D Model Ultra Librarian AMN24111 CAD Model

Description

The AMN series is an optical motion sensor from Panasonic.

  • Series: AMN
  • Sensor Type: PIR (Passive Infrared)
  • Sensing Distance: 394" (10m)
  • Output Type: Analog
  • Trigger Type: Internal
  • Voltage Supply: 4.5V to 5.5V
  • Package: Cylinder
  • Operating Temperature: -20°C to 60°C
  • Product Status: Active
  • Manufacturer: Panasonic
