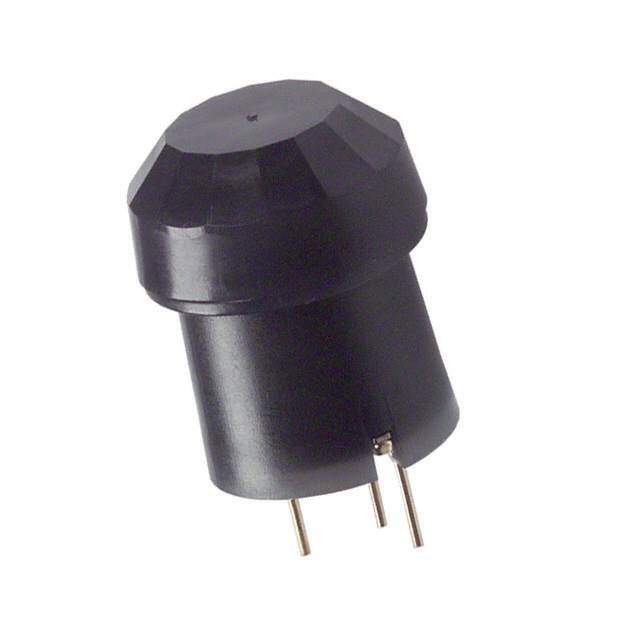

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Panasonic Electric Works
Status Obsolete
Sensor Type Motion, Pyroelectric, PIR (Passive Infrared)
Sensing Distance 78.7" (2m) 6.6'
Output Type Digital
Supply Voltage (V) 3V ~ 6V
Trigger Type Internal
Features Polyethylene, Black Lens
Manufacturer Package Cylinder
Temperature Range - Operating -20°C ~ 60°C
Detection Pattern Slight
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1144485-AMN12111
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AMN12111 CAD Model

Description

The AMN12111 is a motion sensor from Panasonic Electric Works. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Manufacturer: Panasonic Electric Works
  • Sensing Distance: 78.7 inches (2m)
  • Detection Pattern: Slight
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Operating Temperature Range: -20°C to 60°C
  • Supply Voltage: 3V to 6V
