Products specifications

Category Sensors, Transducers>Motion Sensors - Optical
Mfr Panasonic Electric Works
Series EKMC
Package Tray
Sensor Type PIR (Passive Infrared)
Sensing Distance 86.614" (2.2m)
Output Type Analog
Voltage - Supply 3V ~ 5.5V
Trigger Type Internal
Features Saturn Lens, Pearl White
Package / Case Module
Temperature Range - Operating -20°C ~ 60°C
Base Product Number EKMC2693113
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Other Names 255-6314
Standard Package 50
Win Source Part Number 1077114-EKMC2693113K
Ultra Librarian 3D Model Ultra Librarian EKMC2693113K CAD Model

Description

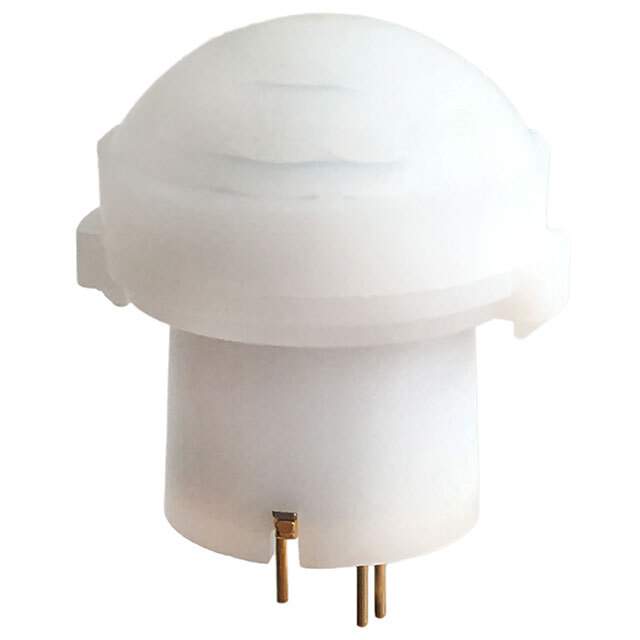

The Panasonic Electric Works EKMC2693113K motion sensor is an optical sensor that has a sensing distance of 86.614 inches (2.2 m) and a voltage supply of 3V to 5.5V.

  • Manufacturer: Panasonic Electric Works
  • Sensor Type: Motion Sensor (Optical)
  • Sensing Distance: 86.614 inches (2.2 m)
  • Voltage Supply: 3V to 5.5V
  • Package: Module
  • Output Type: Analog
  • Trigger Type: Internal
  • Temperature Range: -20°C to 60°C
  • RoHS Compliant: Yes
