Same model may have multiple batches, images only for reference.

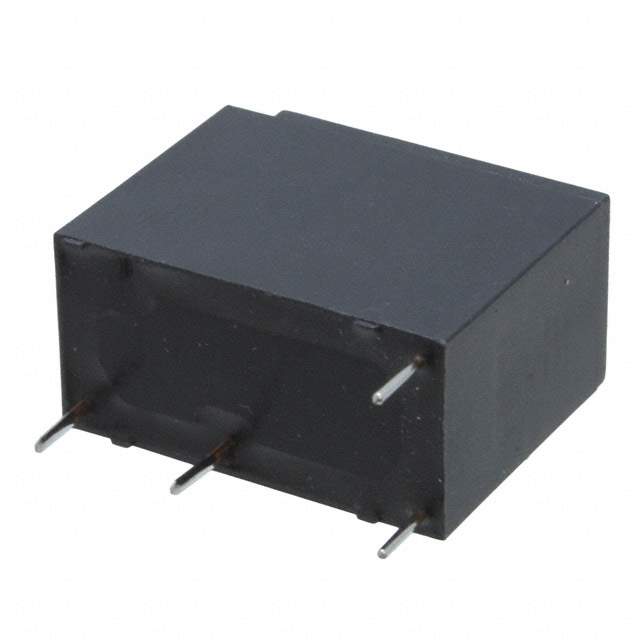

ALQ312 Real Image
Same model may have multiple batches, images only for reference.

ALQ312

Part No ALQ312
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description Power Relay 12VDC 10(NO)/3(NC)A SPST-NO(20mm 10mm 16mm) THT / 1 Form A/1 Form C 10A Small power relays | RELAY GEN PURPOSE SPST 10A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tray
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC - Max
Coil Current 16.7mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class B
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 20ms
Release Time 20ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 720 Ohms
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1143352-ALQ312
Manufacturer Homepage www.panasonic.com/industrial/
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name ALQ
Introduction Date June 21, 2012
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ALQ312 CAD Model

Description

The ALQ312 is a general-purpose relay manufactured by Panasonic Electric Works.

  • Win Source Part Number: 1143352
  • Packaging: Tray
  • Termination Style: PC pin
  • Mounting Style: Through hole
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver nickel (AgNi)
  • Coil Resistance: 720 Ohms
  • Coil Current: 16.7mA
  • Operate Time: 20ms
  • Release Time: 20ms
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 10A
  • Switching Voltage: 250VAC - Max
  • Application: Ideal for use in various industrial applications such as power supplies, timers, and motor control circuits.
