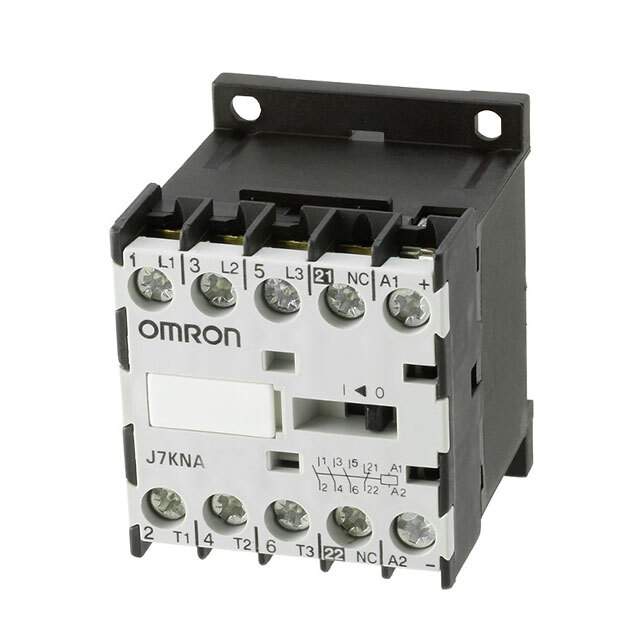

J7KNA-09-01 24D Real Image
Same model may have multiple batches, images only for reference.

J7KNA-09-01 24D

Part No J7KNA-09-01 24D
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY CONTACTOR 3PST 9A 24V /
Datasheet
J7KNA-09-01 24D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Contactors (Electromechanical)
Mfr Omron Automation and Safety
Series J7KNA
Package Bulk
Mounting Type Chassis Mount, DIN Rail
Coil Voltage 24VDC
Contact Form 3PST-NO (3 Form A)
Contact Rating (Current) 9 A
Switching Voltage 400VAC - Max
Termination Style Screw Terminal
Temperature Range - Operating -40°C ~ 60°C
Base Product Number J7KNA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0045
Other Names J7KNA090124D,Z5401,J7KNA-09-01 24D-ND
Standard Package 1
Win Source Part Number 1041903-J7KNA-09-01 24D
Ultra Librarian 3D Model Ultra Librarian J7KNA-09-01 24D CAD Model

Description

The J7KNA series relay from Omron Automation and Safety is a 3PST-NO (3 Form A) contact form relay with a coil voltage of 24VDC.

  • Contact Form: 3PST-NO (3 Form A)
  • Coil Voltage: 24VDC
  • Switching Voltage: 400VAC max
  • Contact Rating (Current): 9A
  • Termination Style: Screw Terminal
  • Mounting Type: Chassis Mount, DIN Rail Mount
  • Operating Temperature: -40°C to 60°C
  • Application: Contactors (Electromechanical)
