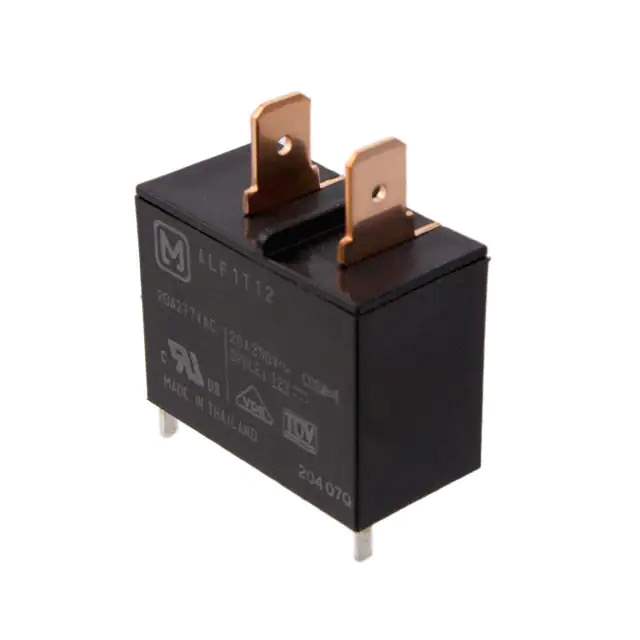

Same model may have multiple batches, images only for reference.

ALF1T12

Name: ALF1T12
Brand: Panasonic
SKU: 860880
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ALF1T12
Manufacturer	Panasonic
Catalog	Power Relays, Over 2 Amps
Description	RELAY GEN PURPOSE SPST 20A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays - Power Relays, Over 2 Amps
Mfr	Panasonic
Series	ALF
Package	Bulk
Product Status	Active
Mounting Type	Through Hole
Coil Voltage	12VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	20 A
Switching Voltage	250VAC - Max
Coil Current	75 mA
Coil Type	Non Latching
Termination Style	PC Pin, Quick Connect - 0.250" (6.3mm)
Must Operate Voltage	8.4 VDC
Must Release Voltage	1.2 VDC
Operate Time	20 ms
Release Time	15 ms
Temperature Range - Operating	-40°C ~ 60°C
Contact Material	Silver Tin Oxide (AgSnO)
Relay Type	General Purpose
Coil Resistance	160 Ohms
Base Product Number	ALF1T1
Standard Package	50 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.41.0050
Win Source Part Number	860880-ALF1T12
Ultra Librarian 3D Model	Ultra Librarian ALF1T12 CAD Model

Description

The 860880-ALF1T12 is a power relay from Panasonic's ALF series.

Contact Form: SPST-NO
Contact Rating: 20 A
Coil Voltage: 12VDC
Coil Resistance: 160 Ohms
Coil Current: 75 mA
Termination Style: Quick Connect
Terminal Size: 0.250" (6.3mm)
Mounting Type: Through Hole
Operating Temperature: -40°C to 60°C
