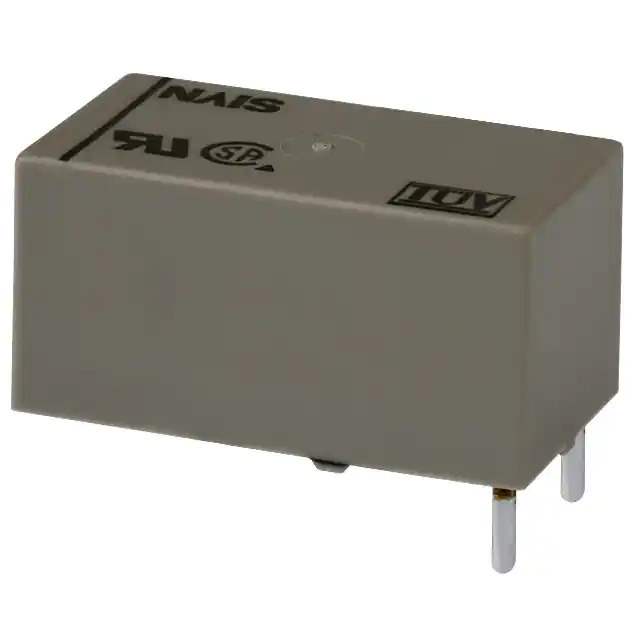

DSP1A-DC12V Real Image
Same model may have multiple batches, images only for reference.

DSP1A-DC12V

Part No DSP1A-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DSP
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 25 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 9.6 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 480 Ohms
Base Product Number DSP1
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 587196-DSP1A-DC12V
Ultra Librarian 3D Model Ultra Librarian DSP1A-DC12V CAD Model

Description

The DSP1A-DC12V is a power relay designed for various applications.

  • Series: DSP
  • Termination Style: PC Pin
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 12VDC
  • Coil Resistance: 480 Ohms
  • Operate Time: 10 ms
  • Release Time: 5 ms
  • Contact Rating: 8 A (250VAC/30VDC)
  • Type: Sealed
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 60°C
  • Manufacturer: Panasonic
  • Status: Active
