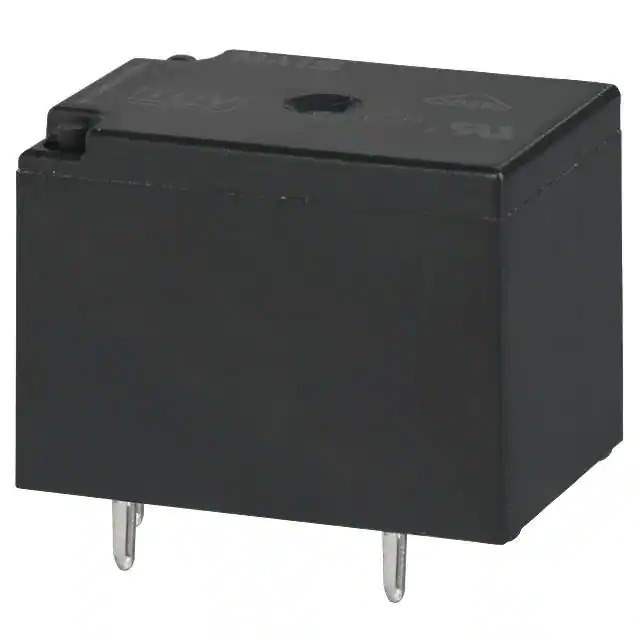

JS1-B-5V-F Real Image
Same model may have multiple batches, images only for reference.

JS1-B-5V-F

Part No JS1-B-5V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JS
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 100VDC - Max
Coil Current 72 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 69.4 Ohms
Base Product Number JS1-B
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 922429-JS1-B-5V-F
Ultra Librarian 3D Model Ultra Librarian JS1-B-5V-F CAD Model

Description

The Panasonic 922429-JS1-B-5V-F is a power relay with a contact form of SPDT (1 Form C).

  • Contact Form: SPDT (1 Form C)
  • Contact Rating (Current): 10 A
  • Switching Voltage: 250VAC, 100VDC - Max
  • Coil Voltage: 5VDC
  • Coil Resistance: 69.4 Ohms
  • Coil Current: 72 mA
  • Series: JS
  • Coil Type: Non-Latching
  • Mounting Type: Through Hole
  • Seal: Fully Sealed
  • Operating Temperature: -40°C ~ 85°C
