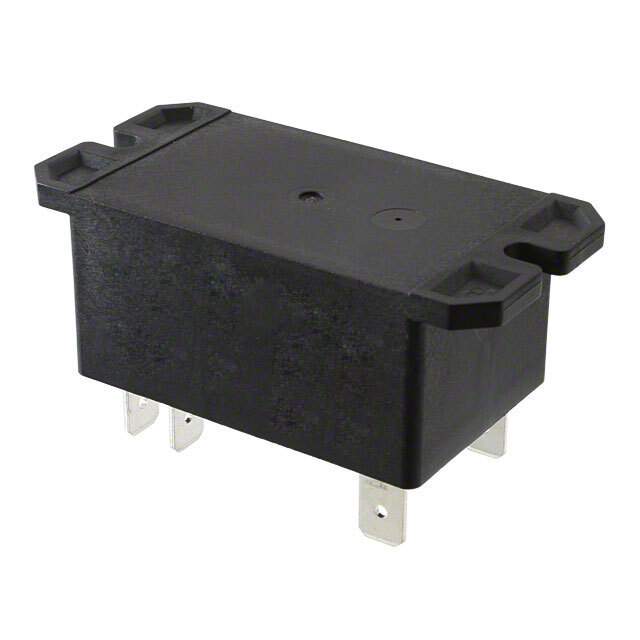

T92P7D32-24 Real Image
Same model may have multiple batches, images only for reference.

T92P7D32-24

Part No T92P7D32-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series T92
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Nom
Coil Current 70.8 mA
Coil Type Non Latching
Termination Style Quick Connect - 0.187"/0.250"
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 350 Ohms
Base Product Number T92P7
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1314361-T92P7D32-24
Ultra Librarian 3D Model Ultra Librarian T92P7D32-24 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays T92P7D32-24 is a general-purpose power relay with a DPST-NO (2 Form A) contact form.

  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Contact Form: DPST-NO (2 Form A)
  • Contact Material: Silver Cadmium Oxide (AgCdO)
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 30 A
  • Switching Voltage: 277VAC - Nom
  • Coil Resistance: 350 Ohms
  • Coil Current: 70.8 mA
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 2.4 VDC
  • Operate Time: 15 ms
  • Release Time: 15 ms
  • Mounting Type: Chassis
  • Termination Style: Quick Connect - 0.187"/0.250"
  • Temperature Range: -55°C to 85°C
  • REACH: Affected
  • ECCN: EAR99
