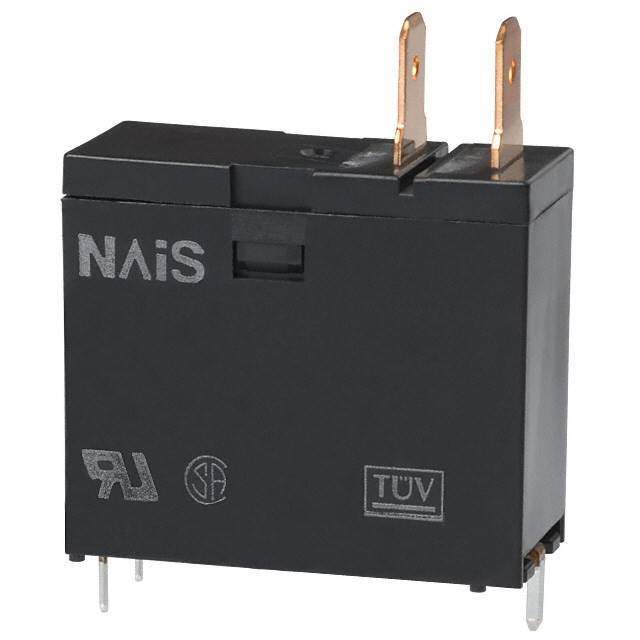

ALE14B12 Real Image
Same model may have multiple batches, images only for reference.

ALE14B12

Part No ALE14B12
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALE
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin, Quick Connect - 0.187" (4.7mm)
Coil Insulation Class B
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number ALE14B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names ALE14B12-ND,255-3658
Standard Package 100
Win Source Part Number 992031-ALE14B12
Ultra Librarian 3D Model Ultra Librarian ALE14B12 CAD Model

Description

The ALE14B12 is a General Purpose Relay manufactured by Panasonic Electric Works.

  • Manufacturer: Panasonic Electric Works
  • Part: ALE14B12
  • Contact Form: SPST-NO (1 Form A)
  • Switching Voltage: 277VAC - Max
  • Contact Rating: 16 A
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Coil Current: 33.3 mA
  • Operate Time: 20 ms
  • Release Time: 20 ms
  • Latching: Non-latching
  • Mounting Type: Through-hole
  • Temperature Range: -40°C to 85°C
  • HTSUS Code: 8536.41.0050
  • ECCN: EAR99
