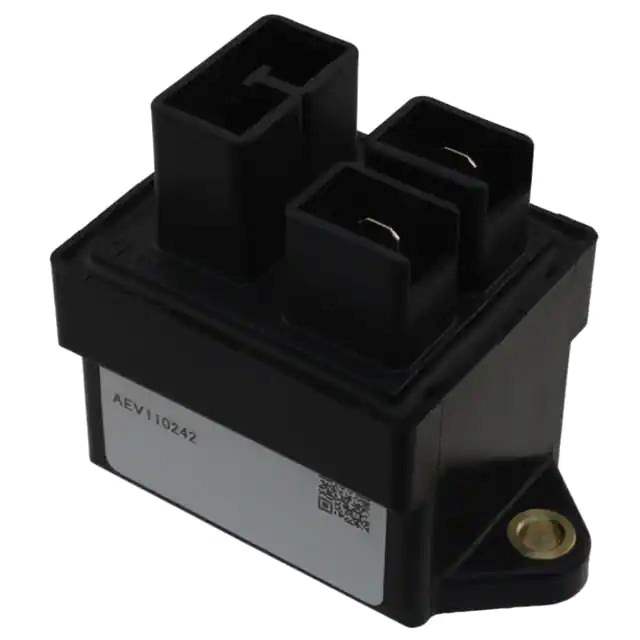

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic
Series AEV
Package Bulk
Product Status Active
Coil Type Non Latching
Coil Current 52 mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 400VDC - Nom
Must Operate Voltage 18 VDC
Must Release Voltage 2 VDC
Operate Time 50 ms
Release Time 30 ms
Mounting Type Chassis Mount
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Temperature Range - Operating -40°C ~ 80°C
Coil Power 1.24W
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 860670-AEV110242
Ultra Librarian 3D Model Ultra Librarian AEV110242 CAD Model

Description

The AEV110242 is an automotive relay from Panasonic.

  • Type: Single-pole, single-throw (SPST-NO)
  • Contact Rating: 10 A
  • Coil Voltage: 24VDC
  • Coil Current: 52 mA
  • Mounting: Chassis mounting
  • Termination: Plug-in, quick connect
  • Operating Temperature: -40°C to 80°C
  • Switching Voltage: 400VDC
  • Release Time: 30 ms
