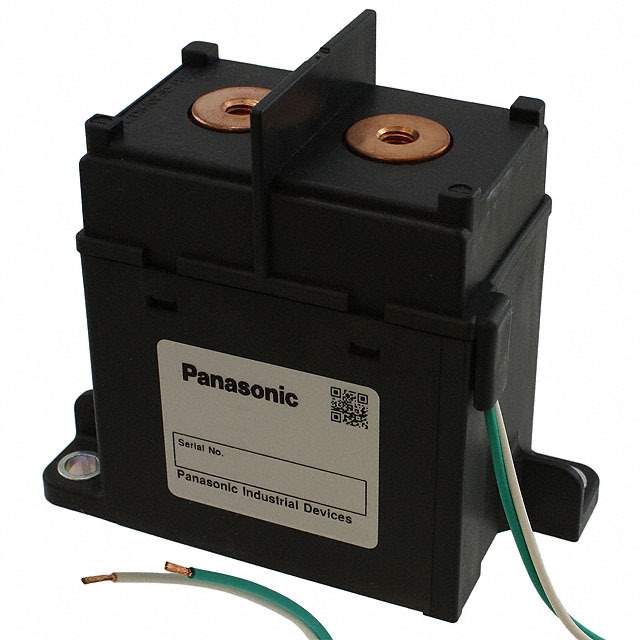

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Automotive Relays
Mfr Panasonic Electric Works
Series AEV
Package Bulk
Coil Type Non Latching
Coil Current 250 mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 200 A
Switching Voltage 400VDC - Nom
Must Operate Voltage 18 VDC
Must Release Voltage 2 VDC
Operate Time 50 ms
Release Time 30 ms
Mounting Type Chassis Mount
Termination Style Wire Leads
Temperature Range - Operating -40°C ~ 80°C
Coil Power 6W
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-3597
Standard Package 1
Win Source Part Number 1214347-AEV17024
Ultra Librarian 3D Model Ultra Librarian AEV17024 CAD Model

Description

This automotive relay comes with a Win Source Part Number of 1214347-AEV17024.

  • Series: AEV
  • Contact Form: SPST-NO (1 Form A)
  • Switching Current: Up to 200 A
  • Coil Voltage: 24VDC
  • Coil Current: 250 mA
  • Mount: Chassis Mount
  • Operating Temperature: -40°C to 80°C
  • Manufacturer: Panasonic Electric Works
  • ECCN: EAR99
