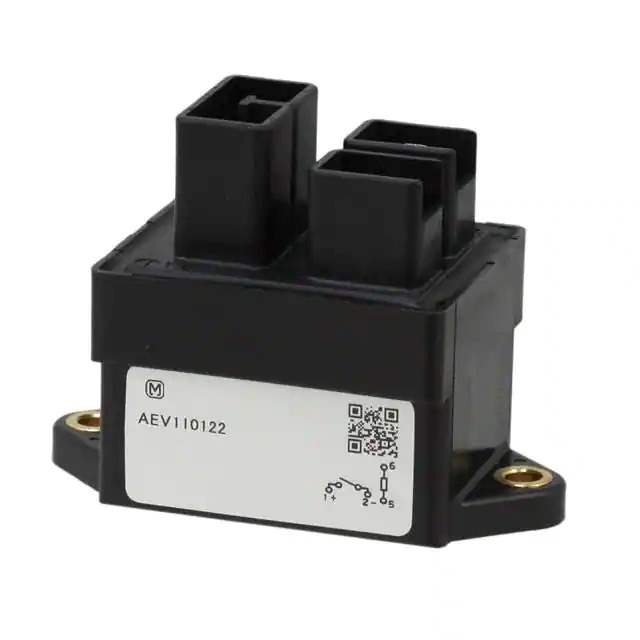

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic
Series AEV
Package Bulk
Product Status Active
Coil Type Non Latching
Coil Current 103 mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 400VDC - Nom
Must Operate Voltage 9 VDC
Must Release Voltage 1 VDC
Operate Time 50 ms
Release Time 30 ms
Mounting Type Chassis Mount
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Temperature Range - Operating -40°C ~ 80°C
Coil Power 1.24W
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 846777-AEV110122
Ultra Librarian 3D Model Ultra Librarian AEV110122 CAD Model

Description

The 846777-AEV110122 is an automotive relay from Panasonic's AEV series.

  • Series: AEV
  • Type: Automotive Relay
  • Contact Configuration: SPST-NO
  • Contact Rating: 10 A
  • Coil Voltage: 12VDC
  • Coil Current: 103 mA
  • Termination Style: Plug-In (0.187" (4.7mm) Quick Connect)
  • Mounting: Chassis Mount
  • Temperature Range: -40°C to 80°C
