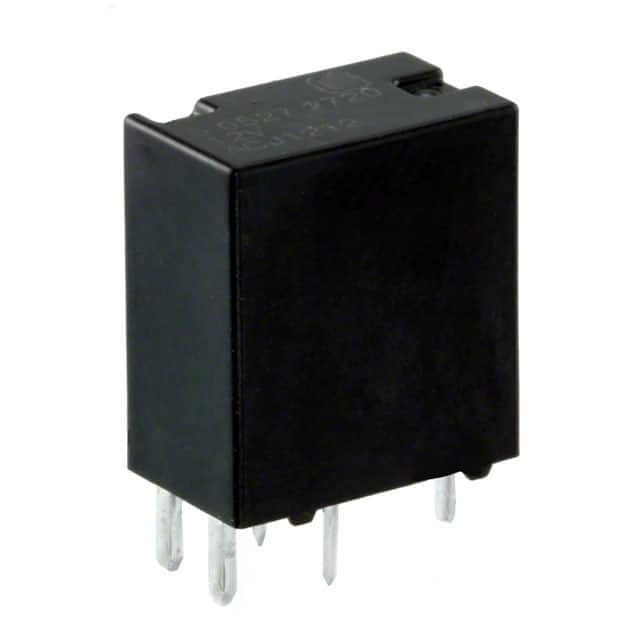

ACJ1212
Same model may have multiple batches, images only for reference.

ACJ1212

Part No ACJ1212
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPDT 20A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic
Series ACJ
Package Box
Product Status Active
Coil Type Non Latching
Coil Current 53.3 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20 A
Switching Voltage 14VDC - Nom
Must Operate Voltage 7.2 VDC
Must Release Voltage 1 VDC
Operate Time 10 ms
Release Time 10 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 640mW
Coil Resistance 225 Ohms
Base Product Number ACJ121
Standard Package 70 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 859255-ACJ1212
Ultra Librarian 3D Model Ultra Librarian ACJ1212 CAD Model

Description

The 859255-ACJ1212 is a high-quality automotive relay from Panasonic's ACJ series.

  • Relay Type: Automotive
  • Contact Form: SPDT (Single-Pole Double-Throw)
  • Sealed: Yes
  • Contact Material: Silver alloy, cadmium-free
  • Coil Voltage: 12VDC
  • Coil Resistance: 225 Ohms
  • Contact Rating: 20A
  • Switching Voltage: 14VDC
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Standard Package: 70 pieces
