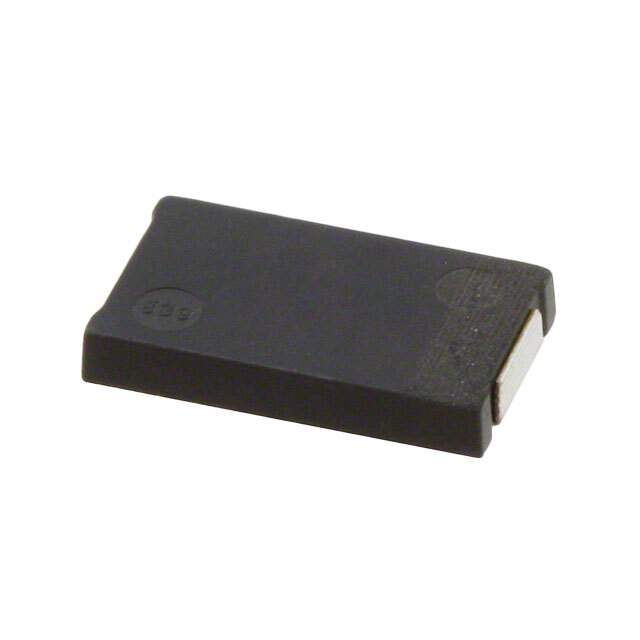

Same model may have multiple batches, images only for reference.

EEF-CS1C330R

Name: EEF-CS1C330R
Brand: Panasonic
SKU: 963814
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEF-CS1C330R
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 33UF 20% 16V SMD / 33 µF 16 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 40mOhm 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	SP-Cap CS
Package	Tape & Reel
Product Status	Not For New Designs
Type	Polymer
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	40mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ High Frequency	3.2 A @ 100 kHz
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.047" (1.20mm)
Mounting	SMD (SMT)
Package / Case	2917 (7343 Metric)
Base Product Number	EEF-CS
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	EEFCS1C330R,P16803-1,P16803-2,P16803-6
Standard Package	3,500
Win Source Part Number	963814-EEF-CS1C330R
Ultra Librarian 3D Model	Ultra Librarian EEF-CS1C330R CAD Model

Description

The SP-Cap CS series EEF-CS1C330R capacitor from Panasonic Electronic Components is a high-quality polymer capacitor with a capacitance of 33 µF and a voltage rating of 16 V.

Capacitance: 33 µF
Voltage Rating: 16 V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 40mOhm
Package: Tape and reel
Height Seated (Max): 0.047" (1.20mm)
Standard Package: 3,500
Use: General purpose
Lifetime: 2000 Hrs @ 105°C
