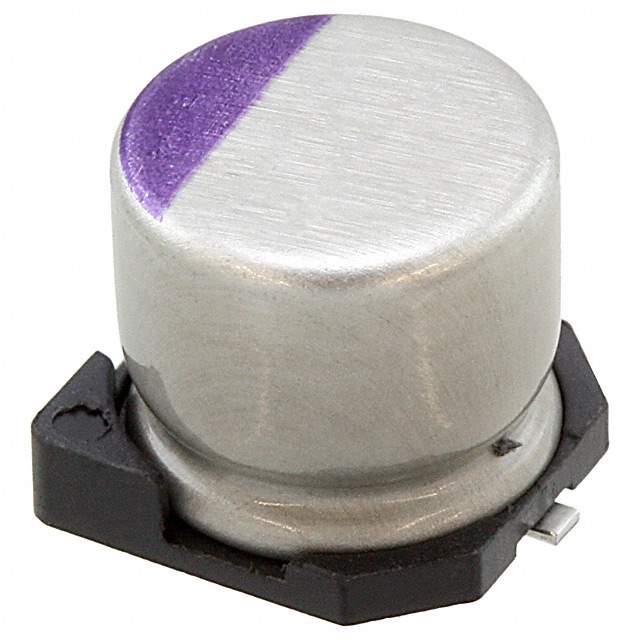

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPC
Package Tape & Reel
Type Polymer
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 4 V
ESR (Equivalent Series Resistance) 21mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 131.5 mA @ 120 Hz
Ripple Current @ High Frequency 2.63 A @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 4SVPC
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16578DKR,P16578TR,P16578CT
Standard Package 1,000
Win Source Part Number 1183023-4SVPC330MY
Ultra Librarian 3D Model Ultra Librarian 4SVPC330MY CAD Model

Description

The OS-CON™, SVPC series SVPC330MY from Panasonic Electronic Components is a polymer type capacitor that is designed for general purpose applications. This component has a capacitance of 330μF with a tolerance of ±20% and is rated @ 4V. The ESR (Equivalent Series Resistance) of this product is 21mOhm, and it has a lifetime of 2000 hours @ 105°C. The package/case of this component is radial, can - SMD, and its temperature range for operating is between -55°C to 105°C.
