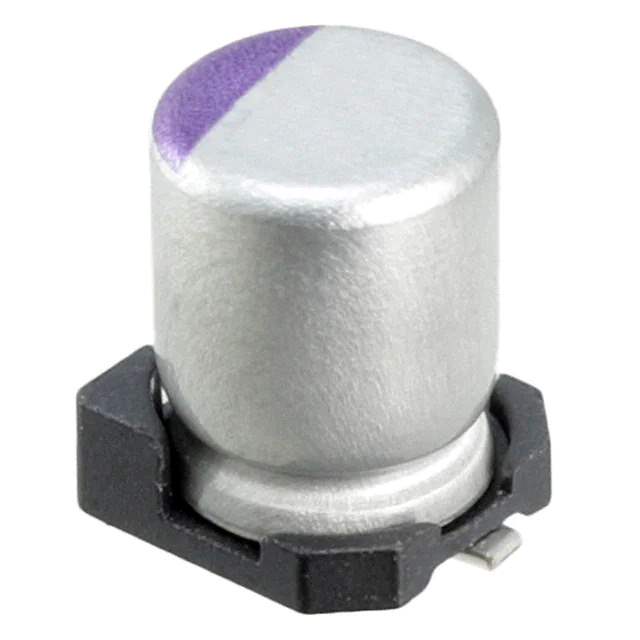

10SVP10M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic
Series OS-CON™, SVP
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) 220mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 35 mA @ 120 Hz
Ripple Current @ High Frequency 700 mA @ 100 kHz
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 10SVP
Standard Package 2,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 853722-10SVP10M
Ultra Librarian 3D Model Ultra Librarian 10SVP10M CAD Model

Description

The Panasonic 853722-10SVP10M is a polymer capacitor from the OS-CON™ SVP series manufactured by Panasonic.

  • Series: OS-CON™ SVP
  • Capacitance: 10µF
  • Voltage Rating: 10V
  • Application: General-Purpose
  • Height: 0.217" (5.50mm)
  • Mounting: Surface Mountable
  • Size: 0.157" Dia (4.00mm)
  • ESR: 220mOhm
  • Temperature Range: -55°C to 105°C
  • Product Status: Active
