Same model may have multiple batches, images only for reference.

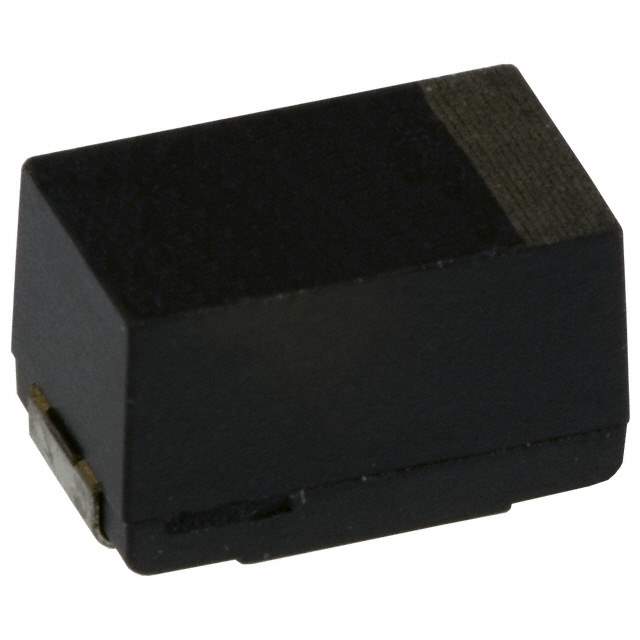

EEF-UE0D561LR Real Image
Same model may have multiple batches, images only for reference.

EEF-UE0D561LR

Part No EEF-UE0D561LR
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 2V SMD / 560 µF 2 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 7mOhm 1000 Hrs @ 105°C
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap UE
Package Tape & Reel
Product Status Obsolete
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 2 V
ESR (Equivalent Series Resistance) 7mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.165" (4.20mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number EEF-UE
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEFUE0D561LR,PCE4256DKR,PCE4256CT,PCE4256TR
Standard Package 2,000
Win Source Part Number 1013876-EEF-UE0D561LR
Ultra Librarian 3D Model Ultra Librarian EEF-UE0D561LR CAD Model

Description

The EEF-UE0D561LR is a polymer capacitor from Panasonic Electronic Components.

  • Purpose: General-purpose
  • Capacitance: 560 μF
  • Voltage Rating: 2V
  • Tolerance: ±20%
  • ESR: 7mOhm
  • Mount Type: Surface mount
  • Package Size: 2917 (7343 Metric)
  • Package: Tape and reel
  • Standard Package: 2,000
  • Height: 0.165" (4.20mm)
  • Temperature Range: -40°C to 105°C
  • Status: Obsolete
