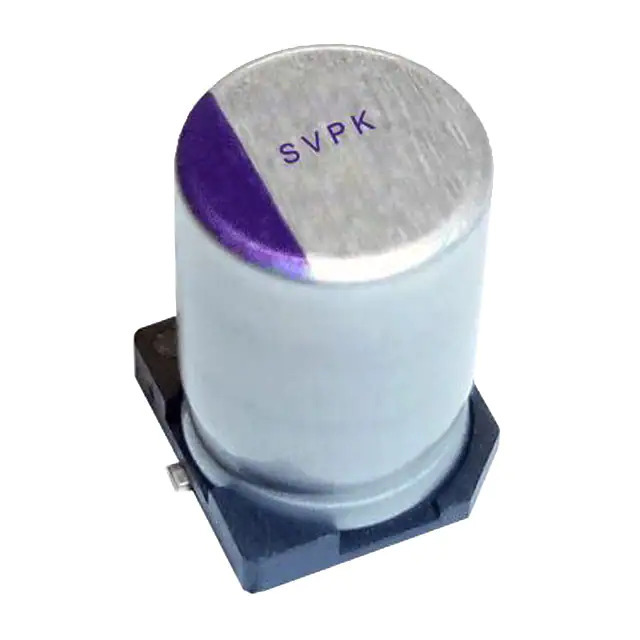

Same model may have multiple batches, images only for reference.

50SVPK22M

Name: 50SVPK22M
Brand: Panasonic
SKU: 1359501
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	50SVPK22M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 22UF 20% 50V SMD / 22 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 35mOhm 1000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPK
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	35mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	41 mA @ 120 Hz
Ripple Current @ High Frequency	820 mA @ 100 kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	50SVPK
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359501-50SVPK22M
Ultra Librarian 3D Model	Ultra Librarian 50SVPK22M CAD Model

Description

The Panasonic Electronic Components OS-CON SVPK series polymer capacitor, part number 1359501-50SVPK22M, is a high-quality capacitor designed for general-purpose applications.

Series: OS-CON SVPK
Capacitance: 22μF
Voltage Rating: 50V
Mounting Type: Surface Mount
Package: Radial, Can - SMD
ESR: 35mOhm
Lifetime: 1000 hours @ 125°C
Status: Active
Application: General Purpose
