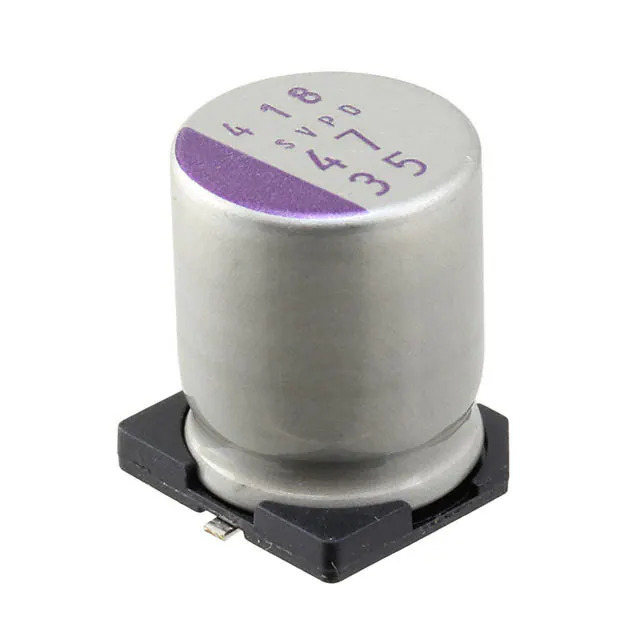

35SVPD47M Panasonic
Same model may have multiple batches, images only for reference.

35SVPD47M

Part No 35SVPD47M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 47UF 20% 35V SMD / 47 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 2000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPD
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 30mOhm
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 57.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.15 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.500" (12.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 35SVPD
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359574-35SVPD47M
Ultra Librarian 3D Model Ultra Librarian 35SVPD47M CAD Model

Description

The 1359574-35SVPD47M is a polymer capacitor from Panasonic Electronic Components.

  • Series: OS-CON™ SVPD
  • Capacitance: 47 μF
  • Tolerance: ±20%
  • Rated Voltage: 35 V
  • ESR: 30mOhm
  • Lifetime: 2000 hours @ 125°C
  • Application: General Purpose
  • Ripple Current (Low Frequency): 57.5 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.15 A @ 100 kHz
  • Package: Radial
  • Mounting Type: Surface Mount
  • Size: 0.394" (10.00mm) in diameter and 0.500" (12.70mm) in height
  • Product Status: Active
  • Packaging: Tape and Reel
