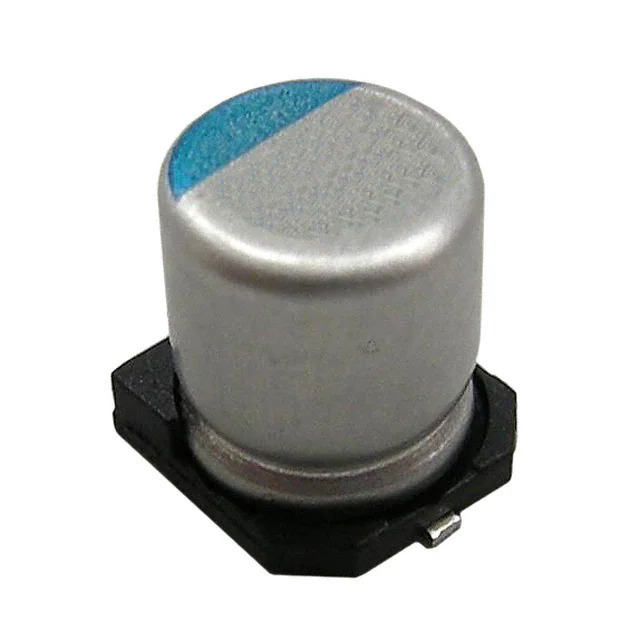

APXJ6R3ARA561MF80G United Chemi-Con
Same model may have multiple batches, images only for reference.

APXJ6R3ARA561MF80G

Part No APXJ6R3ARA561MF80G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 6.3V SMD / 560 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 8mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXJ
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 8mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 250 mA @ 120 Hz
Ripple Current @ High Frequency 5 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359510-APXJ6R3ARA561MF80G
Ultra Librarian 3D Model Ultra Librarian APXJ6R3ARA561MF80G CAD Model

Description

The APXJ6R3ARA561MF80G is a surface mount aluminum polymer capacitor from United Chemi-Con's NPCAP™-PXJ series.

  • Applications: General Purpose
  • Capacitance: 560µF
  • Voltage - Rated: 6.3V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 8mOhm
  • Size / Dimension: 6.30mm Dia
  • Height - Seated (Max): 8.00mm
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Lifetime @ Temp.: 15000 Hrs @ 105°C
  • REACH Status: Unaffected
  • ECCN: EAR99
