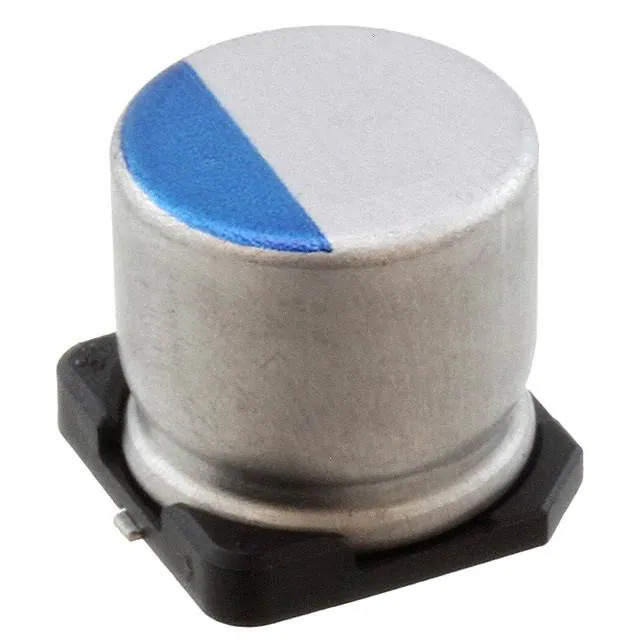

Same model may have multiple batches, images only for reference.
PCV1D471MCL2GS Nichicon
Same model may have multiple batches, images only for reference.

PCV1D471MCL2GS

Part No PCV1D471MCL2GS
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 470UF 20% 20V SMD / 470 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 20mOhm 3000 Hrs @ 105°C
Datasheet
PCV1D471MCL2GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Nichicon
Series PCV
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 20mOhm
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 4.3 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.500" (12.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359543-PCV1D471MCL2GS
Ultra Librarian 3D Model Ultra Librarian PCV1D471MCL2GS CAD Model

Description

The PCV1D471MCL2GS is a polymer capacitor from Nichicon's PCV series.

  • Capacitance: 470 µF
  • Voltage Rating: 20 V
  • Tolerance: ±20%
  • Equivalent Series Resistance (ESR): 20 mOhm
  • Lifetime: 3,000 hours @ 105°C
  • Size/Dimension: 0.394" diameter (10.00mm)
  • Height: 0.500" (12.70mm)
  • Mounting Type: Surface Mount
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Packaging: Tape and Reel
  • Status: Active
  • REACH: Affected
  • Manufacturer: Nichicon
