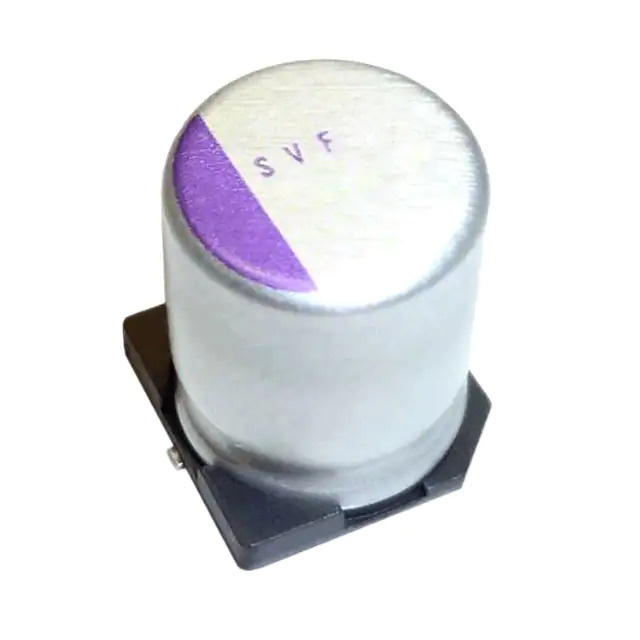

25SVF27M Panasonic
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVF
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 27 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 38.5 mA @ 120 Hz
Ripple Current @ High Frequency 770 mA @ 100 kHz
Lead Spacing -
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 25SVF
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359594-25SVF27M
Ultra Librarian 3D Model Ultra Librarian 25SVF27M CAD Model

Description

The 1359594-25SVF27M is a polymer capacitor from Panasonic Electronic Components. It is part of the OS-CON™ SVF series and has a capacitance of 27 μF with a voltage rating of 25 V.

  • Series: OS-CON™ SVF
  • Capacitance: 27 μF
  • Voltage Rating: 25 V
  • Mounting Type: Surface Mount
  • Size: 0.197" diameter
  • Height: 0.236" height
  • ESR: 40mOhm
  • Ripple Current (Low Frequency): 38.5 mA
  • Ripple Current (High Frequency): 770 mA
  • Lifetime: 1000 hours @ 125°C
  • Application: General Purpose
  • RoHS Compliant: Yes
  • REACH: Unaffected
