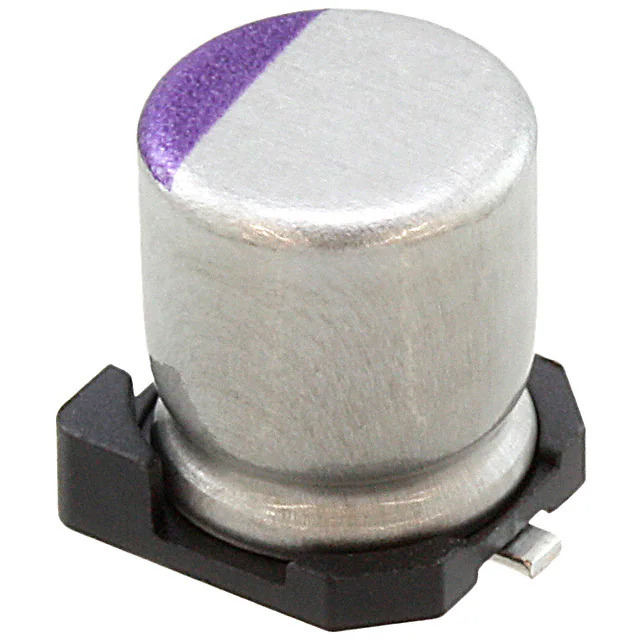

Same model may have multiple batches, images only for reference.

6SVPE180M

Name: 6SVPE180M
Brand: Panasonic
SKU: 1359465
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6SVPE180M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 180UF 20% 6.3V SMD / 180 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 15mOhm 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPE
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	180 µF
Tolerance	±20%
Voltage - Rated	6.3 V
ESR (Equivalent Series Resistance)	15mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	157.5 mA @ 120 Hz
Ripple Current @ High Frequency	3.15 A @ 100 kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	6SVPE
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359465-6SVPE180M
Ultra Librarian 3D Model	Ultra Librarian 6SVPE180M CAD Model

Description

The 1359465-6SVPE180M is an aluminum polymer capacitor manufactured by Panasonic Electronic Components.

Series: OS-CON™, SVPE
Mounting Type: Surface Mount
Capacitance: 180 µF
Voltage Rating: 6.3 V
Tolerance: ±20%
ESR: 15mOhm
Application: General Purpose
Ripple Current (Low Frequency): 157.5 mA @ 120 Hz
Ripple Current (High Frequency): 3.15 A @ 100 kHz
Size: 0.197" diameter (5.00mm)
Height: 0.236" (6.00mm)
REACH Compliant: Unaffected
ECCN: EAR99
Packaging: Tape & Reel
