Same model may have multiple batches, images only for reference.

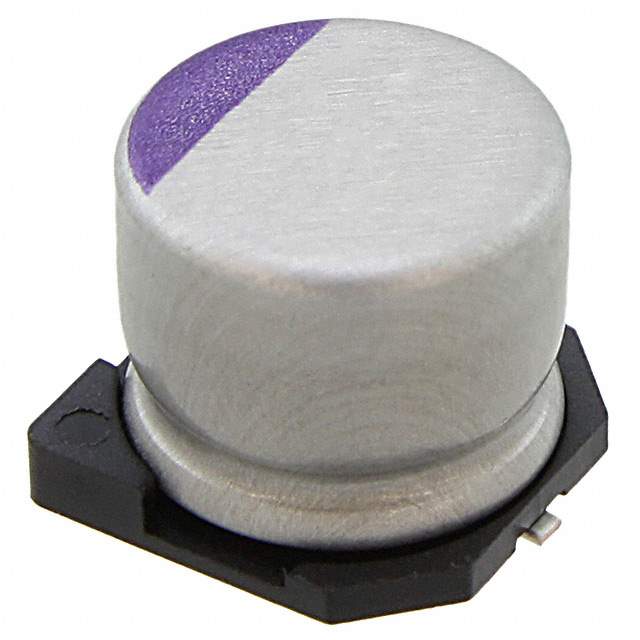

20SVPF180M Real Image
Same model may have multiple batches, images only for reference.

20SVPF180M

Part No 20SVPF180M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 180UF 20% 20V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 180μF
Tolerance ±20%
Voltage Rating 20V
ESR 25 mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Ripple Current - Low Frequency 160mA @ 120Hz
Ripple Current - High Frequency 3.2A @ 100kHz
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 1003066-20SVPF180M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian 20SVPF180M CAD Model

Description

The Panasonic Electronic Components 1003066-20SVPF180M is a high-quality polymer capacitor that is designed to deliver reliable performance.

  • Manufacturer: Panasonic Electronic Components
  • Product Name: 1003066-20SVPF180M
  • Voltage Rating: 20V
  • Capacitance: 180μF
  • Supply and Demand: Balanced
  • Win Source Part Number: 1003066-20SVPF180M
  • Ripple Current @ 120Hz: 160mA
  • Ripple Current @ 100kHz: 3.2A
