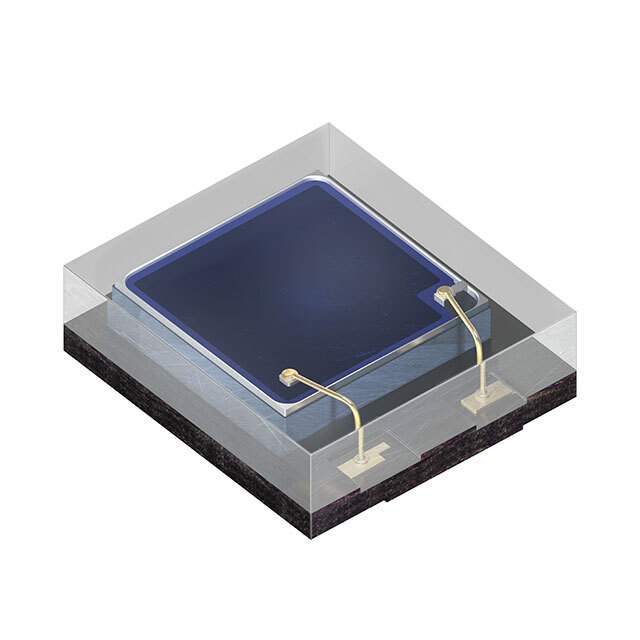

SFH 2704 Real Image
Same model may have multiple batches, images only for reference.

SFH 2704

Part No SFH 2704
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 900NM 2SMD / Photodiode 900nm 47ns, 67ns 120° 2-SMD, No Lead
Datasheet
SFH 2704 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photodiodes
Mfr ams-OSRAM USA Inc.
Series CHIPLED
Package Tape & Reel
Wavelength 900nm
Spectral Range 400nm ~ 1100nm
Diode Type PIN
Responsivity @ nm 0.34 A/W @ 535nm
Response Time 47ns, 67ns
Voltage - DC Reverse (Vr) (Max) 6 V
Current - Dark (Typ) 100pA
Active Area 1.51mm²
Viewing Angle 120°
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Other Names 475-3652-1,475-3652-6,Q65112A7214,475-3652-2
Standard Package 3,000
Win Source Part Number 970234-SFH 2704
Ultra Librarian 3D Model Ultra Librarian SFH 2704 CAD Model

Description

The CHIPLED SFH 2704 optical sensor photodiode by ams-OSRAM USA Inc. is a high-quality sensor designed for use in various applications.

  • Spectral Range: 400nm ~ 1100nm
  • Viewing Angle: 120°
  • Response Time: 47ns or 67ns
  • Diode Type: PIN
  • Voltage - DC Reverse (Vr) (Max): 6 V
  • Responsivity @ nm: 0.34 A/W @ 535nm
  • Current - Dark (Typ): 100pA
  • Active Area: 1.51mm²
  • Package/Case: 2-SMD, no lead
  • Mounting: SMD (SMT)
  • Temperature Range - Operating: -40°C ~ 85°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8541.49.1050
  • Other Names: 475-3652-1, 475-3652-6, Q65112A7214, 475-3652-2
