Same model may have multiple batches, images only for reference.

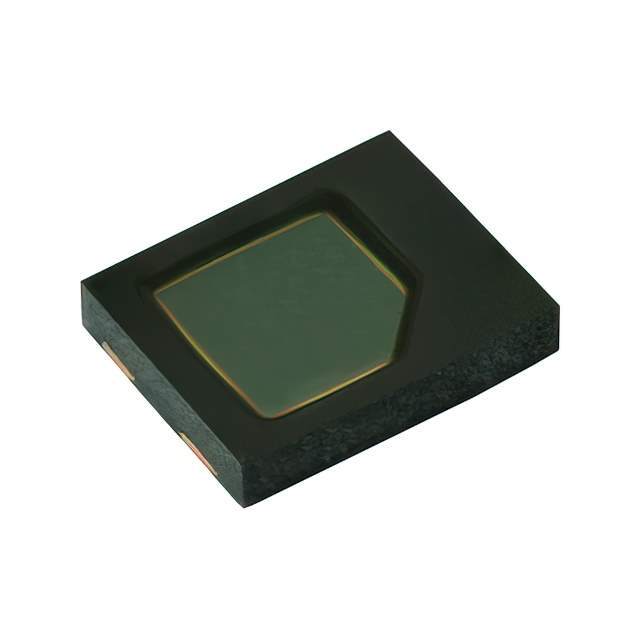

VEMD5010X01 Real Image
Same model may have multiple batches, images only for reference.

VEMD5010X01

Part No VEMD5010X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description Silicon PIN Photodiode | SENSOR PHOTODIODE 940NM 4SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel
Wavelength 940nm
Spectral Range 450nm ~ 1100nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Maximum) 20V
Current - Dark 2nA
Active Area 7.5mm²
Viewing Angle 65°
Temperature Range - Operating -40°C ~ 110°C
Mounting Style SMD
Manufacturer Package 4-SMD, No Lead Exposed Pad
Manufacturer Pack Quantity 1
MSL Level 4 (72 Hours)
Win Source Part Number 1279169-VEMD5010X01
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VEMD5010X01 CAD Model

Description

The Vishay VEMD5010X01 is a PIN diode designed for use in a range of applications.

  • Reverse Voltage: 20V
  • Response Time: 100ns
  • Viewing Angle: 65°
  • Application: Sensors and Transducers
  • Mounting: SMD (SMT)
  • Spectral Range: 450nm to 1100nm
  • Active Area: 7.5mm²
  • Supply and Demand Status: Sufficient
  • Package: 4-SMD, no lead exposed pad
  • Operating Temperature Range: -40°C to 110°C
  • Current Dark: 2nA
