Same model may have multiple batches, images only for reference.

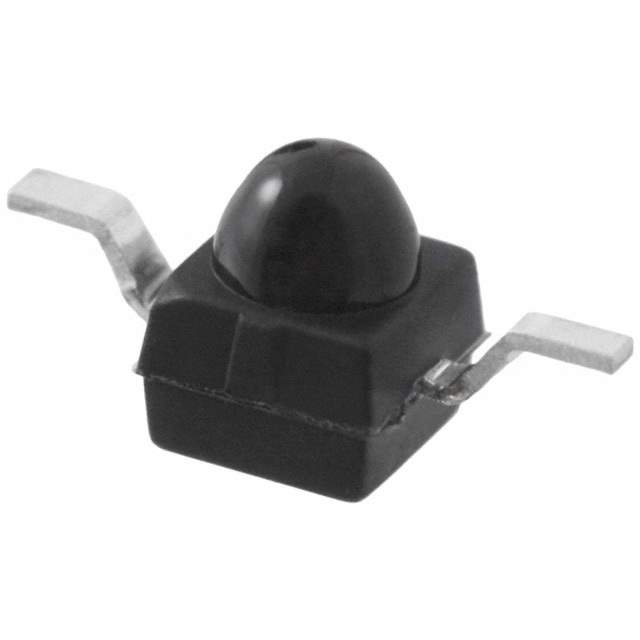

VEMD2000X01 Real Image
Same model may have multiple batches, images only for reference.

VEMD2000X01

Part No VEMD2000X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE PIN 940NM REV GWING
Datasheet
VEMD2000X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Wavelength 940nm
Spectral Range 750nm to 1050nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60V
Current - Dark (Typ) 1nA
Active Area 0.23mm²
Viewing Angle 30°
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Dimension 2-SMD, Z-Bend
Win Source Part Number 397823-VEMD2000X01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VEMD2000X01 CAD Model

Description

The Vishay VEMD2000X01 is a PIN diode that is used in sensors and transducers.

  • Manufacturer: Vishay
  • Popularity: High
  • Supply and Demand Status: Limited
  • Mounting Type: Surface Mount
  • Response Time: 100ns
  • Voltage Range: 60V
  • Viewing Angle: 30 degrees
  • Spectral Range: 750nm to 1050nm
  • Active Area: 0.23mm²
