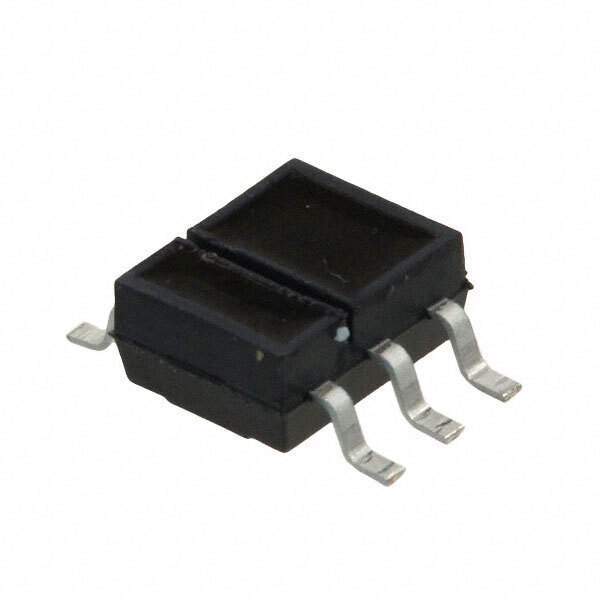

SFH 9201-3/4-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 9201-3/4-Z

Part No SFH 9201-3/4-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Reflective - Analog Output
Description INTERRUPTER RELFECT W/FILTR SMD / Reflective Optical Sensor 0.197" (5mm) 6-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Reflective - Analog Output
Mfr ams-OSRAM USA Inc.
Package Tape & Reel
Product Status Obsolete
Sensing Distance 0.197" (5mm)
Sensing Method Reflective
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 20 mA
Current - DC Forward (If) (Max) 50 mA
Output Type Phototransistor
Response Time 50µs, 50µs
Mounting SMD (SMT)
Package / Case 6-SMD
Temperature Range - Operating -40°C ~ 100°C
Other Names SFH920134Z,475-2658-6,475-2658-2,Q65110A2716,475-2658-1
Standard Package 1,000
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1234906-SFH 9201-3/4-Z
Ultra Librarian 3D Model Ultra Librarian SFH 9201-3/4-Z CAD Model

Description

The SFH 9201-3/4-Z is an optical sensor with a reflective analog output.

  • Sensing Distance: 0.197" (5mm)
  • Response Time: 50µs
  • Output Type: Phototransistor
  • Maximum Collector Emitter Breakdown Voltage: 30 V
  • Maximum Collector Current: 20 mA
  • Maximum DC Forward Current: 50 mA
  • Package: Tape & reel
  • Package/Case: 6-SMD
  • Temperature Range: -40°C to 100°C
  • MSL Level: 4 (72 Hours)
  • Status: Obsolete
