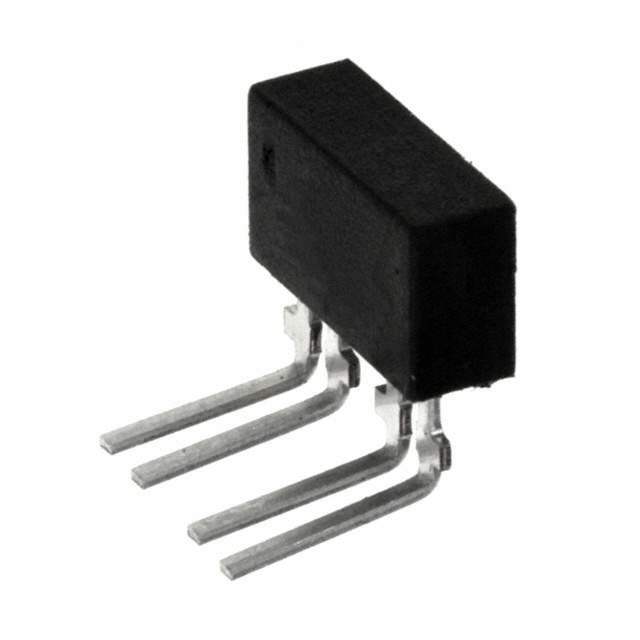

TCRT1010 Real Image
Same model may have multiple batches, images only for reference.

TCRT1010

Part No TCRT1010
Manufacturer Vishay
Catalog Optical Sensors - Reflective - Analog Output
Description SENSOR OPTO TRANS 4MM REFL THPCB / Reflective Optical Sensor 0.157" (4mm) PCB Mount
Datasheet
TCRT1010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Reflective - Analog Output
Mfr Vishay Semiconductor Opto Division
Package Bulk
Sensing Distance 0.157" (4mm)
Sensing Method Reflective
Voltage - Collector Emitter Breakdown (Max) 32 V
Current - Collector (Ic) (Max) 50 mA
Current - DC Forward (If) (Max) 50 mA
Output Type Phototransistor
Mounting Type Through Hole, Right Angle
Package / Case PCB Mount
Temperature Range - Operating -40°C ~ 85°C
Base Product Number TCRT1010
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.9500
Other Names 751-1032
Standard Package 1,000
Win Source Part Number 1165258-TCRT1010
Ultra Librarian 3D Model Ultra Librarian TCRT1010 CAD Model

Description

The Vishay Semiconductor Opto Division TCRT1010 is a reflective analog output optical sensor.

  • Output Type: Phototransistor
  • Sensing Distance: 0.157" (4mm)
  • Voltage Collector Emitter Breakdown: 32 V
  • Current Collector: 50 mA
  • Current DC Forward: 50 mA
  • Mounting Type: Through-hole
  • Package/Case: PCB Mount
  • Temperature Range: -40°C to 85°C
