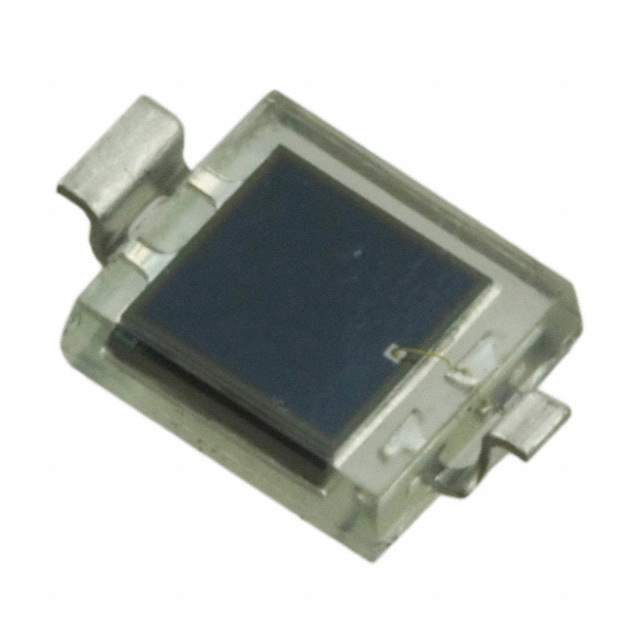

VBPW34SR Real Image
Same model may have multiple batches, images only for reference.

VBPW34SR

Part No VBPW34SR
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE PIN HI SPEED HI SENS
Datasheet
VBPW34SR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Wavelength 940nm
Spectral Range 430nm to 1100nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60V
Current - Dark (Typ) 2nA
Active Area 7.5mm²
Viewing Angle 130°
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Dimension 2-SMD, Z-Bend
Win Source Part Number 036223-VBPW34SR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VBPW34SR CAD Model

Description

The VBPW34SR is a PIN diode that comes in a 2-SMD, Z-Bend package.

  • Package: 2-SMD, Z-Bend
  • Maximum Reverse Voltage: 60 V
  • Response Time: 100 ns
  • Viewing Angle: 130°
  • Wavelength: 940 nm
  • Application: Sensors and transducers
  • Temperature Range: -40°C to 100°C
  • Manufacturer: Vishay
  • Packaging: Reel - TR package
