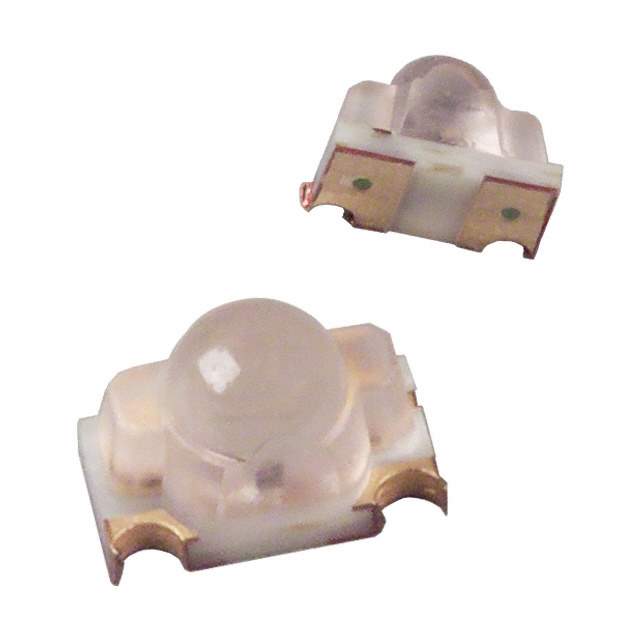

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Wavelength 820nm
Spectral Range 400nm to 1100nm
Response Time 10ns
Voltage - DC Reverse (Vr) (Max) 20V
Current - Dark (Typ) 10nA
Viewing Angle 40°
Temperature Range - Operating -30°C to 85°C
Mounting SMD (SMT)
Dimension Side View
Win Source Part Number 119224-PD100MC0MP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PD100MC0MP CAD Model

Description

The Sharp Microelectronics PD100MC0MP is a surface mount photodiode designed for use in electronic circuits.

  • Mounting Type: Surface mount
  • Response Time: 10 ns
  • Maximum Reverse Voltage: 20 V
  • Viewing Angle: 40 degrees
  • Spectral Range: 400 nm to 1100 nm
  • Dark Current: 10 nA
  • RoHS Compliant: Yes
  • Operating Temperature: -30°C to +85°C
  • Status: Obsolete
