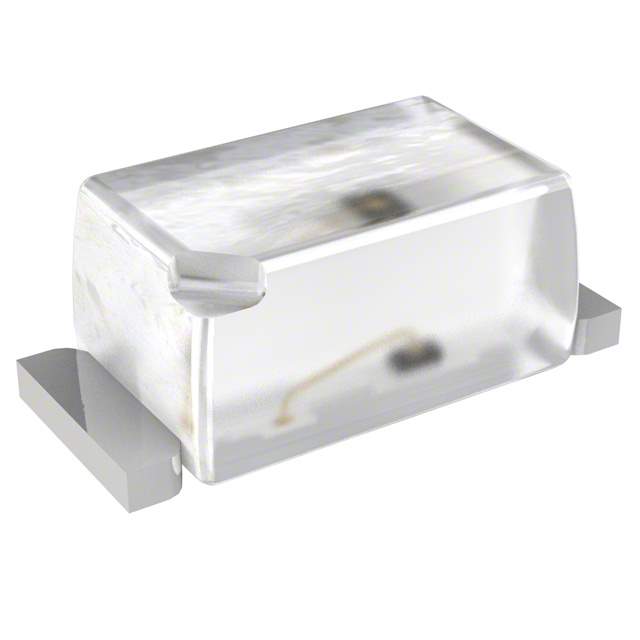

SFH 3010-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 3010-Z

Part No SFH 3010-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 860NM TOP VIEW 2SMD / Phototransistors 860nm Top View 2-SMD, Flat Lead
Datasheet
SFH 3010-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr ams-OSRAM USA Inc.
Package Tape & Reel
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 15 V
Current - Collector (Ic) (Max) 15 mA
Current - Dark (Id) (Max) 50 nA
Wavelength 860nm
Viewing Angle 160°
Power - Max 130 mW
Mounting SMD (SMT)
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Package / Case 2-SMD, Flat Lead
Other Names Q65110A6458,SFH 3010-Z,475-1257-6,SFH3010Z,475-1257-1,475-1257-2
Standard Package 5,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 1234949-SFH 3010-Z
Ultra Librarian 3D Model Ultra Librarian SFH 3010-Z CAD Model

Description

The ams-OSRAM USA Inc. SFH 3010-Z is an optical sensor - phototransistor with a viewing angle of 160°.

  • Viewing Angle: 160°
  • Maximum Power: 130 mW
  • Voltage - Collector Emitter Breakdown (Max): 15 V
  • Mounting: SMD (SMT)
  • Packaging: Tape & reel
  • Current - Collector (Ic) (Max): 15 mA
  • Wavelength: 860nm
  • Operating Temperature Range: -40°C to 100°C (TA)
  • Category: Sensors, Transducers
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.49.7080
