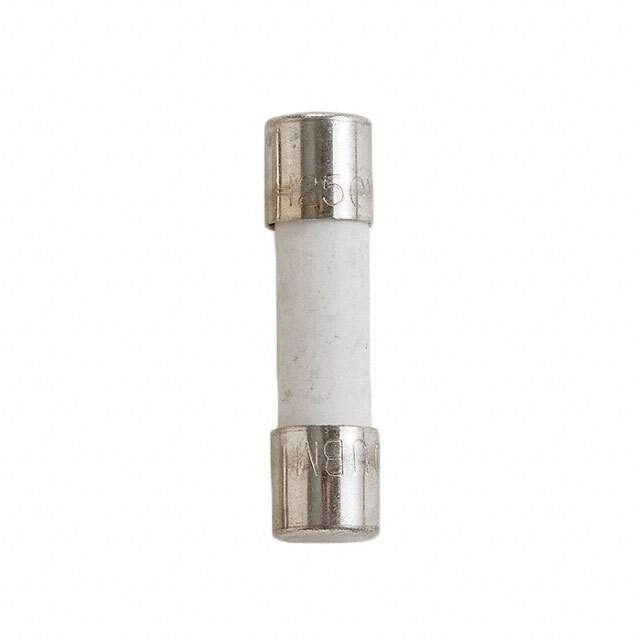

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr OptiFuse
Series TCC
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 20 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 200A
Melting I2t 959.4
Approval Agency CSA, KC, PSE/JET, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0028 Ohms
Base Product Number TCC
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8535.10.0040
Other Names 2298-TCC-20A
Standard Package 1
Win Source Part Number 1168680-TCC-20A
Ultra Librarian 3D Model Ultra Librarian TCC-20A CAD Model

Description

The TCC-20A is a ceramic cartridge fuse that belongs to the TCC series manufactured by OptiFuse.

  • Series: TCC
  • Voltage Rating: 250V AC
  • Response Time: Slow Blow
  • Breaking Capacity @ Rated Voltage: 200A
  • Melting I2t: 959.4
  • DC Cold Resistance: 0.0028 Ohms
  • Current Rating: 20A
  • Operating Temperature Range: -55°C to 125°C
