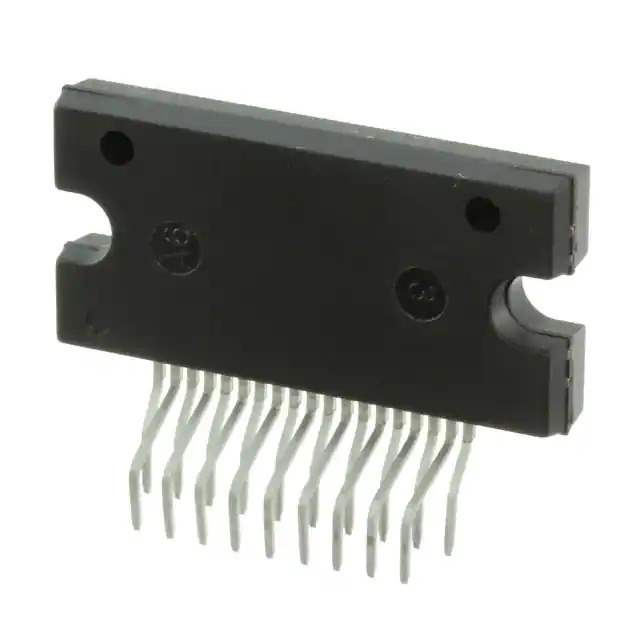

ON Semiconductor STK672-600B-E Stepper Motor Driver

The STK672-600B-E from ON Semiconductor is a highly-integrated, high-performance stepper motor driver that is designed to deliver precision and power in a compact package. This advanced motor driver IC is ideal for a wide range of applications including office automation machines, factory automation systems, and home appliances that require fine control of stepper motors.

Key Features:

• Integrated Unipolar Stepper Motor Driver: The STK672-600B-E is capable of driving unipolar stepper motors, making it versatile for various applications.
• High Voltage and Current Ratings: With an operating voltage range from 10V to 44V and an output current of up to 2.5A, this driver can handle a broad spectrum of stepper motors.
• Built-In Microstepping Controller: The device supports microstepping control, which allows for smoother and more precise motor movements. It can drive motors in full-step, half-step, quarter-step, and 1/16 microstep modes.
• Thermal Shutdown Feature: The STK672-600B-E includes a thermal shutdown circuit that protects the IC from overheating, enhancing the reliability and longevity of the driver.
• Low ON-Resistance: The low ON-resistance of the output stage ensures high efficiency and reduced power dissipation.
• Package: It comes in a compact 27-pin SIP (Single In-line Package) that saves space on the PCB.

Applications:

• 3D Printers
• CNC Machines
• Robotics
• Office Automation Equipment
• Textile Machinery
• Medical Devices

The ON Semiconductor STK672-600B-E stepper motor driver is an excellent choice for designers looking for a reliable, high-performance solution for controlling stepper motors. With its integrated features and robust design, it simplifies the design and enhances the performance of stepper motor applications.

Note: Always consult the manufacturer's datasheet for the most detailed and up-to-date information about the product.
