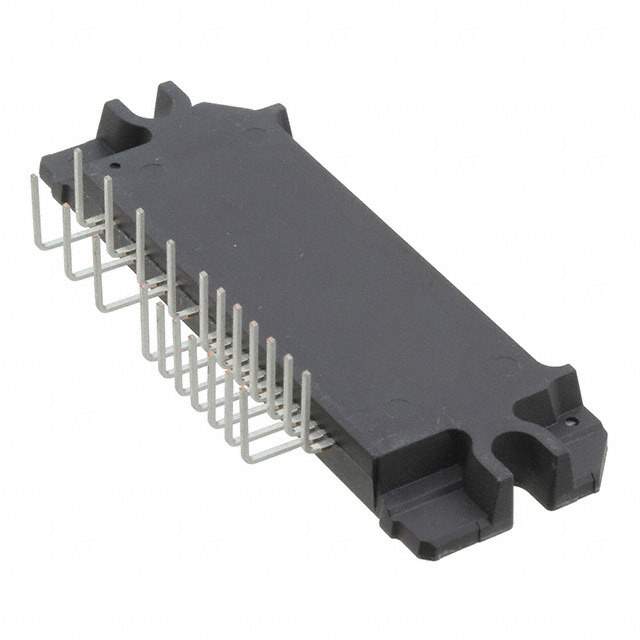

ON Semiconductor STK551U362A-E Intelligent Power Module

The STK551U362A-E from ON Semiconductor is an advanced Intelligent Power Module (IPM) that integrates power devices, drivers, and protection circuitry into a compact package. This high-performance module is designed to offer efficient power management and is ideal for a wide range of applications, including motor drives, air conditioners, and power inverters.

Key Features

• Integrated Design: The module combines IGBTs, freewheeling diodes, gate drivers, and protection logic in a single package, which simplifies design and reduces external component count.
• High Voltage and Current Capability: With a 600V rating and a 20A current capability, the STK551U362A-E can handle demanding power applications.
• Overcurrent Protection: The built-in overcurrent protection ensures reliable operation and extends the life of the module by preventing damage due to excessive current.
• Thermal Shutdown: An integrated thermal shutdown feature provides additional protection by turning off the module if the temperature exceeds a safe threshold.
• Isolation: The module offers excellent electrical isolation between the high-power and low-power sections, enhancing safety and reliability.
• Lead-Free and RoHS Compliant: The STK551U362A-E is environmentally friendly, complying with RoHS directives and using lead-free materials.

Applications

The versatility of the STK551U362A-E IPM makes it suitable for a variety of applications. Its robust design is particularly well-suited for:

• AC Motor Drives
• Home Appliances
• Industrial Motor Control
• UPS Systems
• Renewable Energy Systems

Conclusion

ON Semiconductor's STK551U362A-E is a top-tier intelligent power module that offers a blend of high performance, integration, and protection features. It is designed to streamline the development process and enhance the performance of power management systems. With its robust capabilities and advanced features, the STK551U362A-E is an excellent choice for designers looking to implement efficient and reliable power solutions in their applications.
