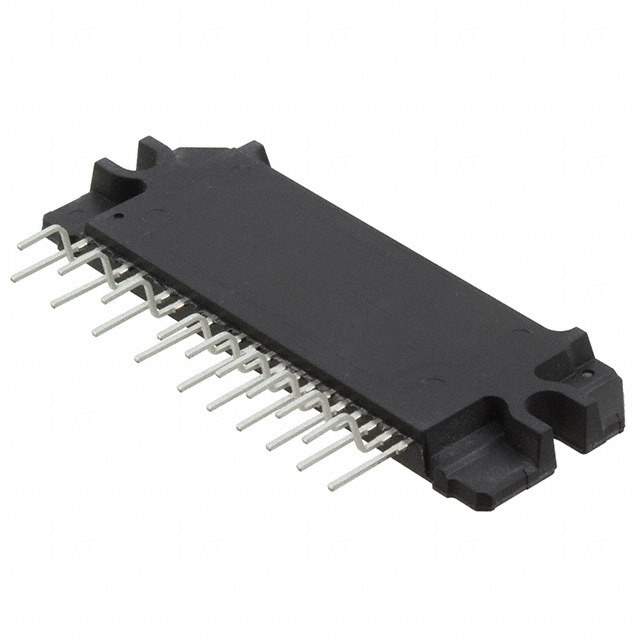

The STK544UC62K-E from ON Semiconductor is an advanced Intelligent Power Module (IPM) designed for high-efficiency and high-performance applications. This module is a part of the highly regarded STK series, known for integrating multiple power and control components into a single package. The STK544UC62K-E is ideal for use in a wide range of applications, including motor drives, power inverters, and other power control circuits.

Key Features

• High Voltage Capability: This IPM can handle voltages up to 600V, making it suitable for various industrial and consumer applications that require high voltage operations.
• Integrated IGBTs: The module contains six IGBTs with a low on-state voltage drop, contributing to its high efficiency and performance.
• Built-in Overcurrent Protection: The STK544UC62K-E includes overcurrent protection, enhancing the safety and reliability of the system it is integrated into.
• Over-Temperature Protection: An over-temperature protection feature is also embedded within the module, preventing damage from excessive heat.
• Isolated Base Plate: The design includes an isolated base plate that allows for easy mounting and thermal management.
• Compact Design: Despite its robust features, the module boasts a compact design, saving space on the PCB and simplifying the overall system design.

Applications

The STK544UC62K-E is versatile and can be used across various domains, including:

• AC Motor Control
• Uninterruptible Power Supplies (UPS)
• Power Inverter Systems
• Renewable Energy Inverters
• Industrial Automation Systems

Quality and Reliability

ON Semiconductor is known for its commitment to quality and the STK544UC62K-E is no exception. It is manufactured to meet high standards of reliability and performance, ensuring long-term operation even in demanding conditions. With ON Semiconductor's reputation, users can expect a product that delivers both innovation and dependability.
