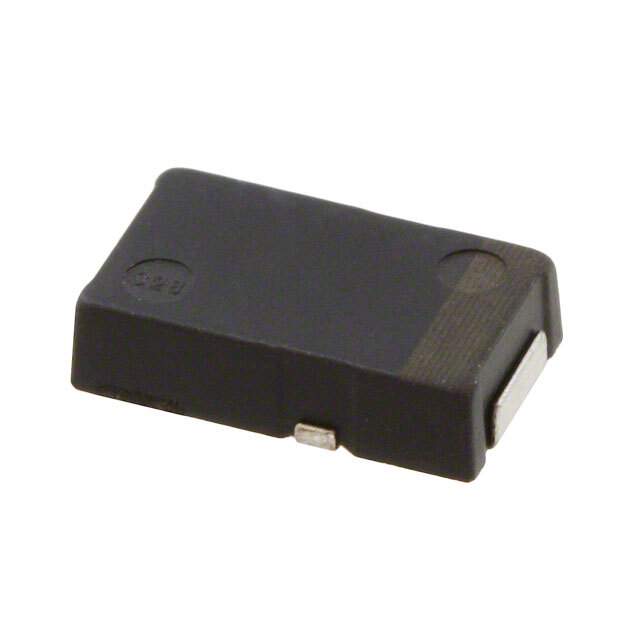

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap LS
Package Tape & Reel (TR)
Type Polymer
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 2 V
ESR (Equivalent Series Resistance) 6mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 7.5 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.047" (1.20mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number EEF-LS
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEFLS0D221R
Standard Package 3,500
Win Source Part Number 1201043-EEF-LS0D221R
Ultra Librarian 3D Model Ultra Librarian EEF-LS0D221R CAD Model

Description

The EEF-LS0D221R is a polymer capacitor belonging to the aluminum - polymer capacitors category, manufactured by Panasonic.

  • Category: Aluminum - Polymer Capacitors
  • Series: SP-Cap LS
  • Capacitance: 220μF
  • Tolerance: ±20%
  • Voltage Rating: 2V
  • Application: General-Purpose
  • Supply and Demand: Balanced
  • Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • ESR: 6mOhm
  • Lifetime: 2000 Hrs @ 105°C
  • Operating Temperature: -55°C to 105°C
  • Package: Tape & Reel (TR)
  • Standard Package: 3,500
