Products specifications Report Issue?

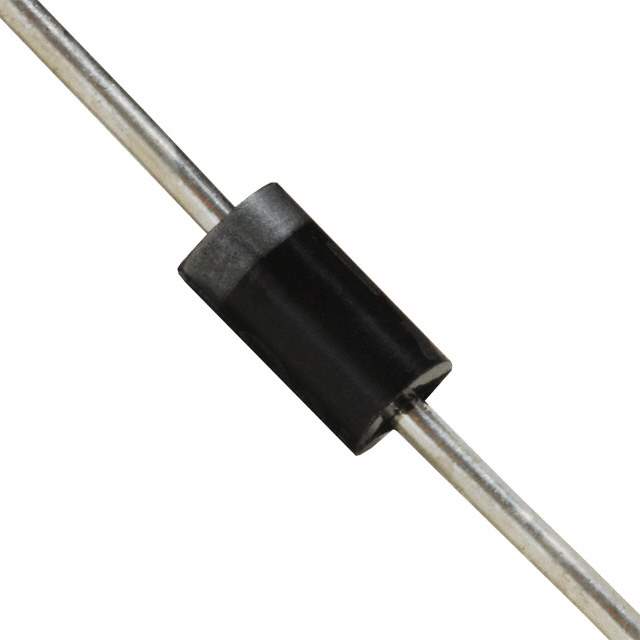

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr onsemi
Package Bulk
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 580 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 30 ns
Current - Reverse Leakage @ Vr 1 mA @ 50 V
Mounting Type Through Hole
Package / Case DO-204AL, DO-41, Axial
Supplier Device Package DO-41
Operating Temperature - Junction 125°C (Max)
Base Product Number SB10
Other Names 2156-SB10-05A3-ON,ONSONSSB10-05A3
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282242-SB10-05A3
Ultra Librarian 3D Model Ultra Librarian SB10-05A3 CAD Model

Description

Product Spotlight: ON Semiconductor's SB10-05A3 Schottky Barrier Rectifier

ON Semiconductor's SB10-05A3 is a high-performance Schottky Barrier Rectifier designed to meet the needs of a variety of electronic applications. This robust diode offers engineers a perfect blend of low forward voltage drop and high current capability, making it an ideal choice for high-efficiency power supply designs.

The SB10-05A3 features a maximum average rectified current of 1.0 A, allowing it to handle moderate power requirements with ease. With its low forward voltage drop of typically 0.385 V at 1.0 A, this Schottky diode ensures minimal power loss in the circuit, leading to improved overall system efficiency. This characteristic is particularly beneficial in applications where power conservation is critical, such as in portable devices and energy-sensitive systems.

Engineered for reliability, the SB10-05A3 can withstand peak repetitive reverse voltage up to 50 V, offering protection against voltage transients and surges that are common in industrial and automotive environments. Its fast switching capability is another notable feature, making it suitable for high-frequency applications where switching losses could otherwise become significant.

The SB10-05A3 comes in a compact SMB package, which not only saves valuable board space but also provides excellent thermal performance. This packaging, combined with its operating junction temperature range of -55°C to +150°C, ensures that the device can handle the rigors of tough environmental conditions while maintaining stable operation.

ON Semiconductor's commitment to environmental stewardship is reflected in the SB10-05A3's compliance with RoHS directives, making it a lead-free and environmentally friendly choice for designers looking to create sustainable products.

In summary, the SB10-05A3 Schottky Barrier Rectifier is a versatile and reliable component that offers a mix of efficiency, thermal performance, and environmental compliance. It is an excellent choice for designers who require a rectifying solution that can deliver both high performance and durability in a wide range of electronic applications.
