The NL17SG17P5T5G is a high-performance single Schmitt-Trigger buffer designed by ON Semiconductor, renowned for its precision and durability in a wide array of electronic applications. This advanced logic gate is an integral component for systems requiring signal conditioning due to its ability to transform an irregular input signal into a well-defined output signal, making it ideal for use in noisy environments.

Key Features

• High-Speed Operation: With its fast switching capabilities, this buffer is well-suited for high-frequency applications, ensuring minimal propagation delay.
• Low Power Consumption: The NL17SG17P5T5G is designed for energy efficiency, which makes it suitable for battery-powered devices and helps in reducing the overall power consumption of the system.
• Robust Schmitt-Trigger Action: With Schmitt-Trigger inputs, this buffer provides excellent noise immunity and stable output transitions, even with slow or noisy input signals.
• Wide Operating Voltage Range: It operates over a broad voltage range, accommodating various levels of signal inputs and making it versatile for different circuit designs.

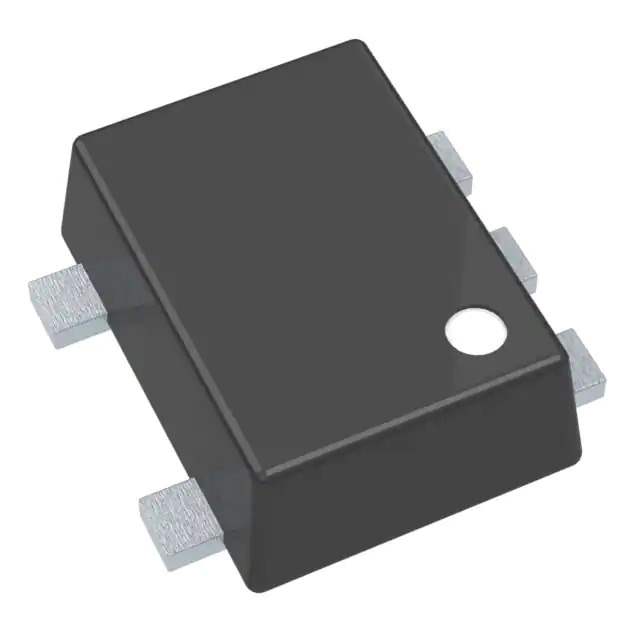

• Compact SOT-953 Package: The small footprint of the SOT-953 package allows for high-density mounting and is ideal for space-constrained applications.

Applications

The NL17SG17P5T5G is a versatile component that can be used in a multitude of applications, including but not limited to:

• Wave shaping and noise filtering circuits
• Square wave and pulse generation
• Signal processing and conditioning
• Glitch removal on digital lines
• Interfaces for microprocessors/microcontrollers

Technical Specifications

Some of the technical specifications of the NL17SG17P5T5G include:

• Supply Voltage Range: 1.65V to 5.5V
• Operating Temperature Range: -55°C to +125°C
• Output Drive Capability: 8 mA at 3.3V
• Input Hysteresis Voltage: Typically 150 mV at Vcc = 5V

With its robust design and ON Semiconductor's commitment to quality, the NL17SG17P5T5G is an excellent choice for designers looking to enhance their digital systems' performance and reliability.
