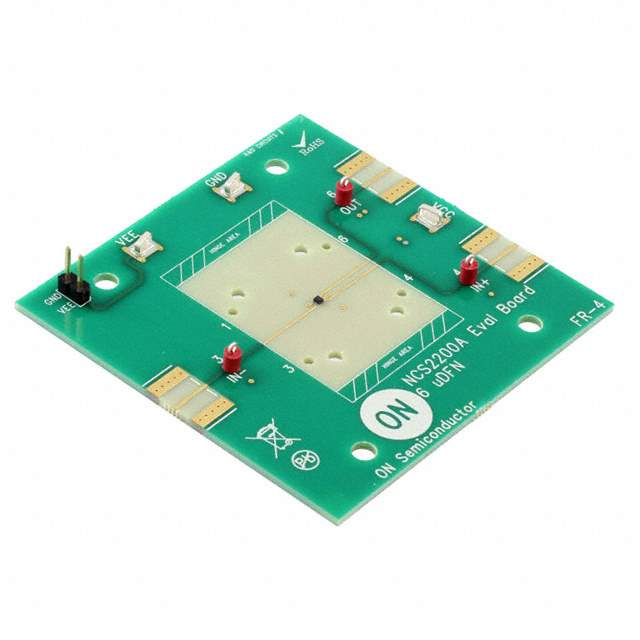

The NCS2200AGEVB from ON Semiconductor is an evaluation board designed for engineers and developers to assess the capabilities and performance of the NCS2200A, a high precision, low power comparator from ON Semiconductor. This evaluation board serves as a robust platform for quick and easy prototyping, enabling users to expedite the design and testing phase of their projects.

Key Features

• High Precision: The NCS2200A comparator on the board offers high precision with a low input offset voltage, making it suitable for a variety of precision applications.
• Low Power Consumption: Designed for energy-sensitive projects, the NCS2200A boasts low power consumption, ensuring efficiency in battery-powered and portable devices.
• Flexible Voltage Range: The device operates over a wide supply voltage range, accommodating various application requirements and simplifying power supply design.
• Push-Pull Output: The comparator features a push-pull output stage, which eliminates the need for an external pull-up resistor and simplifies the output interface.
• Compact and User-Friendly: The NCS2200AGEVB is compact in size, and its user-friendly layout ensures ease of use for quick evaluation and testing.

Applications

The NCS2200A comparator is versatile and can be used in a wide range of applications, including:

• Battery monitoring
• Threshold detection
• Window comparators
• Zero-crossing detectors
• Level shifting

Technical Specifications

• Input Offset Voltage: Typically 1 mV
• Supply Voltage Range: 1.6V to 5.5V
• Quiescent Current: Typically 750 nA
• Propagation Delay: Typically 7 µs

The NCS2200AGEVB evaluation board is an essential tool for designers looking to implement the NCS2200A comparator in their systems. It provides a straightforward approach to testing the comparator's performance and integrating it into a wide array of electronic applications. With its high precision and low power consumption, the NCS2200A is an excellent choice for developing efficient and reliable circuits.
