ON Semiconductor MC74F623N Octal Bidirectional Transceiver

The MC74F623N is a high-performance, integrated circuit designed by ON Semiconductor, which serves as an octal bidirectional transceiver with 3-state outputs. This device is a crucial component in applications requiring efficient data transfer between two buses or within a single bus system. The MC74F623N is particularly well-suited for driving bus lines or buffer memory address registers, providing flexibility and power to modern digital systems.

Key Features

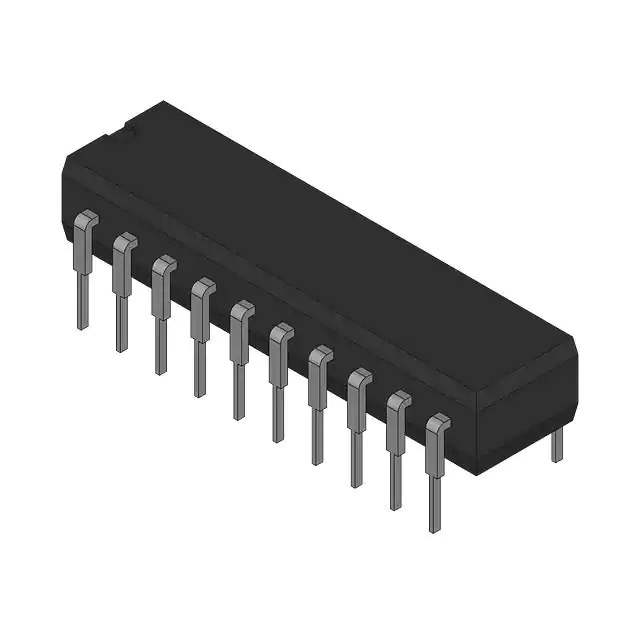

• Dual-In-Line Package: The MC74F623N is housed in a 20-pin plastic DIP, making it easy to integrate into a wide variety of circuit boards.
• Octal Bidirectional Data Path: It features eight bidirectional data lines, allowing simultaneous transmission and reception of data, thereby optimizing the data flow efficiency.
• 3-State Outputs: The transceiver includes 3-state outputs which can be placed in a high impedance state, effectively disconnecting the output from the bus and allowing multiple devices to share the same lines.
• Control Pins: Direction and output enable control pins provide the user with precise control over data transmission and output states, enhancing the device's operational flexibility.
• High-Speed Operation: Designed with speed in mind, the MC74F623N is capable of handling fast data rates, making it suitable for high-speed data communication and processing tasks.
• Low Power Consumption: ON Semiconductor's commitment to energy efficiency is evident in the low power consumption of the MC74F623N, which is ideal for power-sensitive applications.

Applications

The versatility of the MC74F623N makes it an excellent choice for a variety of applications, including:

• Bus interface or bus expansion in microprocessor systems
• Data transfer between two different buses
• Buffering data in memory address registers
• Input/output port expansion
• Support for bidirectional communication in peripheral devices

ON Semiconductor's MC74F623N is a reliable and efficient solution for designers looking to improve data handling in their digital systems. Its combination of speed, power efficiency, and bidirectional data flow capabilities make it a valuable component in any electronic design requiring robust data management.
