Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Mode Critical Conduction (CRM)
Current - Startup 16mA
Supply Voltage - Operating 10 V to 16 V
Temperature Range - Operating -25°C to 125°C
Mounting SMD (SMT)
Case / Package 16-SOIC
Win Source Part Number 022659-MC33368DR2G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Motor Drive & Control
Ultra Librarian 3D Model Ultra Librarian MC33368DR2G CAD Model

Description

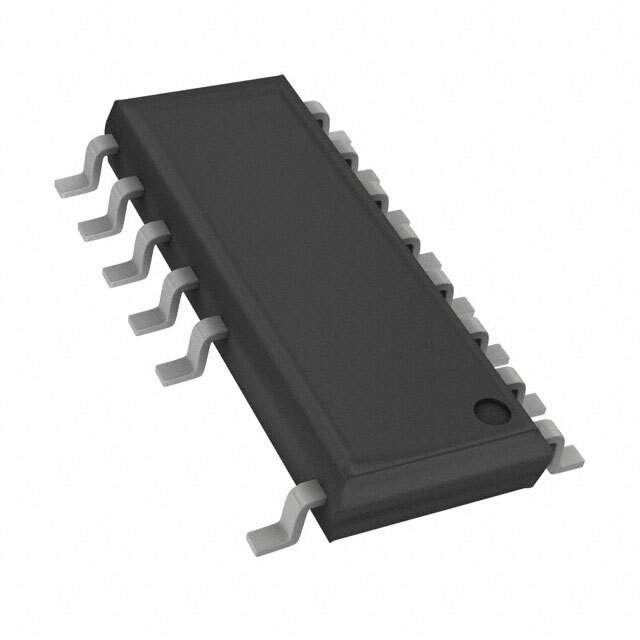

ON Semiconductor MC33368DR2G High Voltage GreenLine SMPS Controller

The ON Semiconductor MC33368DR2G is a cutting-edge, high-performance Switch Mode Power Supply (SMPS) controller designed to deliver efficient and reliable power conversion in a wide range of applications. This GreenLine SMPS controller is specifically engineered to meet the stringent requirements of high-voltage power systems, making it an ideal choice for designers looking to enhance energy efficiency and reduce power consumption in their products.

The MC33368DR2G is a versatile component that can be employed in various configurations including flyback, boost, and forward converters. Its high-voltage capability allows for direct operation from the rectified AC line, eliminating the need for an auxiliary bias winding. This feature simplifies the power supply design and can help reduce overall system cost.

One of the key attributes of the MC33368DR2G is its focus on green power management. It includes built-in features such as a low start-up current of 100 µA and a low operating current of 2.5 mA, which contribute to its energy-saving characteristics. Additionally, the controller offers an active off-mode to minimize power consumption when the power supply is idle or in standby mode.

The device incorporates a range of protection features to ensure the safety and longevity of the power supply system. These include automatic feed-forward compensation, pulse-by-pulse current limiting, and a latch-off mode for overvoltage, undervoltage, and overload conditions. The MC33368DR2G also has an internal thermal shutdown mechanism to protect against excessive temperature rises.

Available in an 8-pin SOP package, the MC33368DR2G is designed for ease of integration into various electronic assemblies. Its compact form factor and robust design make it suitable for a wide array of industrial, consumer, and telecommunications applications where high efficiency and reliability are paramount.

In summary, the ON Semiconductor MC33368DR2G offers an excellent solution for developers seeking a high-voltage, energy-efficient SMPS controller with advanced protection features and the added benefit of contributing to greener power management practices.
